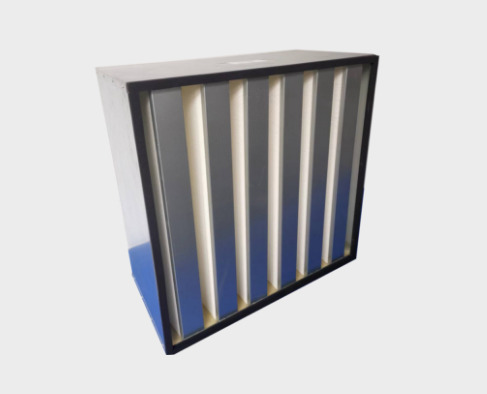

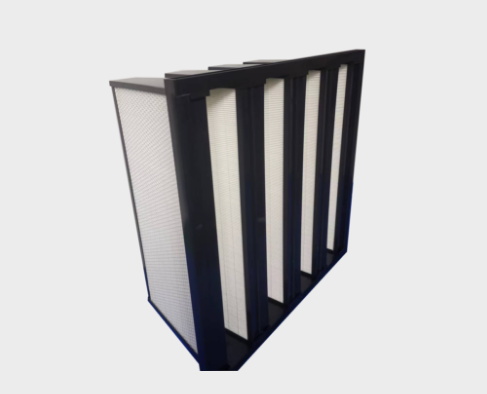

V-type HEPA Filter

【Frame】ABS plastic,Aluminum sheet,Galvanized steel sheet

【Media】Glass fiber,Syntheticfiber

【Separator】Hot melt

【Sealant】Polyurethane

【Gasket】CR,EVA,Neoprene,EPDM/Gel seal

Product details

Product Introduction

Capacity

Efficiency: M-MV: M6、F7、F8、F9(EN779)
M-SHV:85%@0.3um(H10),95%@0.3um(H11),
99.5%@0.3um(H12)(EN1882)M-HV:99.95%0.3um
(H13),99.995%0.3um(H14)(EN1882)

Standard: EN1822,class H11/H13/H14/EN779 M6/F7/F8

Operating Conditions

※Temperature: ≤70℃

※ Humidity: ≤100%RH

Applications

Clean room,medium efficiency filter ventilation and air conditioning system for commercial and industrial

Ventilation and air conditioning system in high humidity environment

Variable air volume ventilation and air conditioning system

Widely used in clean rooms and other on air cleanliness of the strict requirements of the field

Materials

Frame	ABS plastic,Aluminum sheet,Galvanized steel sheet
Media	Glass fiber,Syntheticfiber
Separator	Hot melt
Sealant	Polyurethane
Gasket	CR,EVA,Neoprene,EPDM/Gel seal

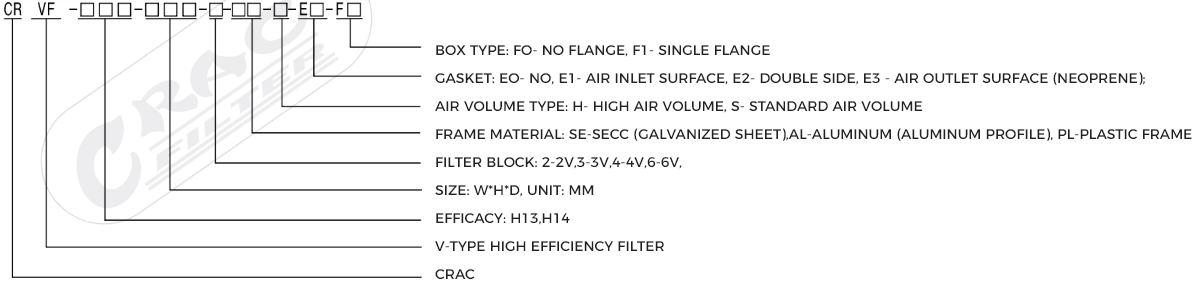

Product structure description

组 289.png

Cracfilter

组 290.png

Wind speed relationship diagram

组 291.png

Technical Parameters

Type	WxHxD (mm)	Area(m²)	Efficiency	Airflow(CMH)	InitialPressure (Pa)	Airflow(CMH)	Initial Pressure (Pa)
Box	305x610x292	10.4	H13	1000	210	1700	280
			H14		230		310
	610x610x292	20.81	H13	2000	230	3400	280
			H14		250		310
Single-header	592x287x292	8.01	H13	1000	250	1700	330
			H14		280		350
	592x492x292	14.79	H13	1600	250	2700	330
			H14		280		350
	592x592x292	18.13	H13	2000	250	3400	330
			H14		280		350
Recommended finla pressure:600pa6
