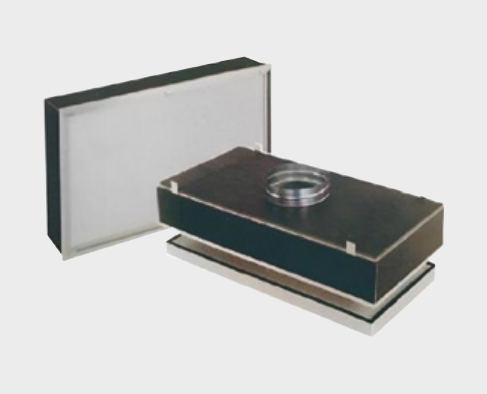

Disposable HEPA Filter

【Frame】Extruded aluminum,Alumlnum sheet Galvanized steel
sheet,Stainless steel sheet
【Top cover】Galvanized steel sheet
【Distributor】Punched steel sheet
【Insulation material】PE foam
【(Media】Ulyra fine glass fiber
【Face guard】Aluminium mesh.Coated mesh
【Sealant】Polyurethane
【Gasket】CR,EVA,Neoprene,EPDM

Product details

Product Introduction

Capacity

Efficiency : DOP99%,99.99%,99.995%@0.3um

Standard: EN1822,class H13/H14

Operating Conditions

Temperature: 70℃

Humidity: ≤100%RH

Applications

HEPA filters for hospitals,electronic factory,semiconductor manufacturing plant,
clean room cleanliness demanding occasions

Materials

Frame	Galvanized steel sheet,Stainless steel sheet
Top cover	Galvanized steel sheet
Distributor	Punched steel sheet
Insulation material	PE foam
Media	Ulyra fine glass fiber
Face guard	Aluminium mesh.Coated mesh
Sealant	Polyurethane
Gasket	CR,EVA,Neoprene,EPDM

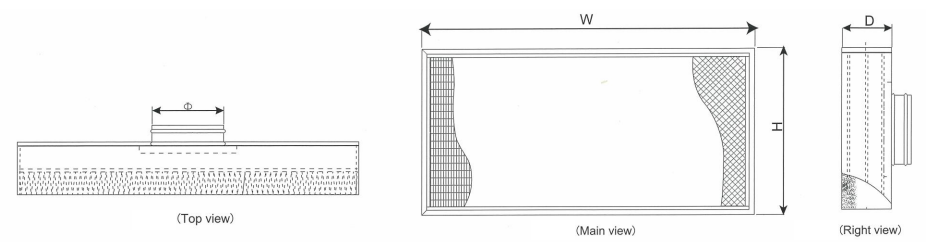

Three Dimensionao View

组 314.png

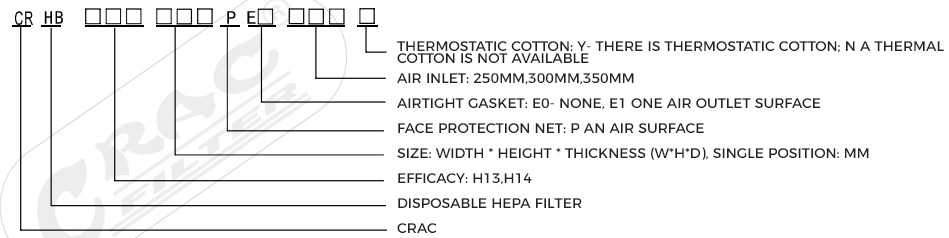

Cracfilter

组 315.png

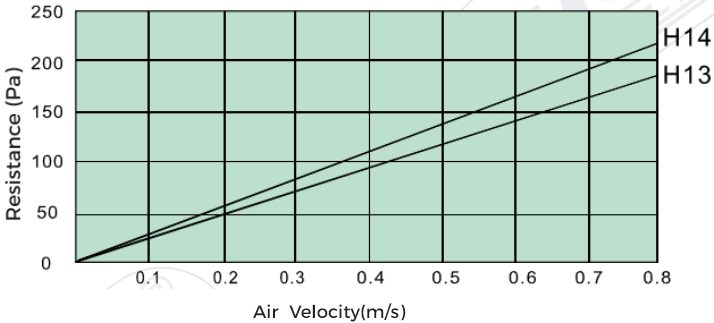

Wind speed relationship diagram

组 316.png

Technical Parameters

WxHxD

(mm)

Area

(m²)

Efficienvy

Airflow

(CMH)

InitialPressure

(Pa)

Airflow

(CMH)

Initial Pressure

(Pa)

600×600×150

9.22

U15

450

115

580

145

U16

130

165

10.6

H13

85

110

H14

95

125

610×610×150

9.5

U15

465

15

600

145

U16

130

165

10.97

H13

85

110

14

95

1170×570×150

17.4

840

15

1080

l40

J16

30

165

20.08

H13

85

10

14

95

25

1210×600×150

19

J15

915

15

1175

145

J16

130

165

21.88

3

85

110

H14

95

125

1220×610×150

19.52

U15

935

115

1205

145

16

130

165

22.46

3

85

110

H14

95

125

The windpipe size 14“(350mm),12"(diameter 300mm),10"(250mm),windpipeand valve;

The above parameters is for reference only,the production of special sizeaccording to customer requirements

【Tags】：

I want to customize：Disposable HEPA Filter

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

WxHxD (mm)	Area (m²)	Efficienvy	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)
600×600×150	9.22	U15	450	115	580	145
	9.22	U16		130		165
	10.6	H13		85		110
	10.6	H14		95		125
610×610×150	9.5	U15	465	15	600	145
	9.5	U16		130		165
	10.97	H13		85		110
		14		95
1170×570×150	17.4		840	15	1080	l40
	17.4	J16		30		165
	20.08	H13		85		10
	20.08	14		95		25
1210×600×150	19	J15	915	15	1175	145
	19	J16		130		165
	21.88	3		85		110
	21.88	H14		95		125
1220×610×150	19.52	U15	935	115	1205	145
	19.52	16		130		165
	22.46	3		85		110
	22.46	H14		95		125
