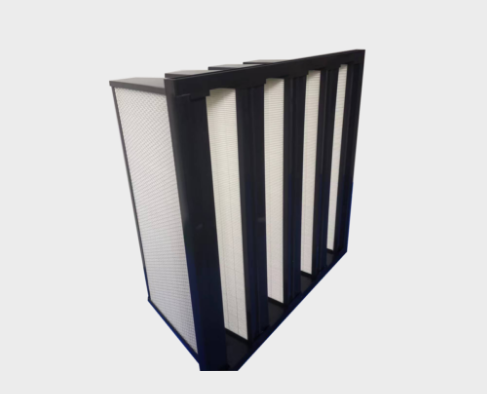

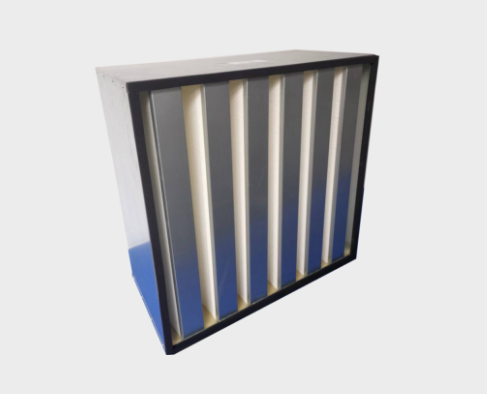

V-type Medium Filter(Glass Fiber)

【Frame】ABS plastic,Aluminum sheet,Galvanized steel sheet

【Media】Glass fiber,Syntheticfiber

【Separator】Hot melt

【Sealant】Polyurethane

【Gasket】CR,EVA,Neoprene,EPDM/Gel seal

Product details

Product Introduction

Capacity

Efficiency: M-MV: M6、F7、F8、F9(EN779)
M-SHV:85%@0.3um(H10),95%@0.3um(H11),
99.5%@0.3um(H12)(EN1882)M-HV:99.95%0.3um
(H13),99.995%0.3um(H14)(EN1882)

Standard: EN1822,class H11/H13/H14/EN779 M6/F7/F8

Operating Conditions

※Temperature: ≤70℃

※ Humidity: ≤100%RH

Applications

Clean room,medium efficiency filter ventilation and air conditioning system for commercial and industrial

Ventilation and air conditioning system in high humidity environment

Variable air volume ventilation and air conditioning system

Widely used in clean rooms and other on air cleanliness of the strict requirements of the field

Materials

Frame	ABS plastic,Aluminum sheet,Galvanized steel sheet
Media	Glass fiber,Syntheticfiber
Separator	Hot melt
Sealant	Polyurethane
Gasket	CR,EVA,Neoprene,EPDM/Gel seal

Product structure description

组 289.png

Cracfilter

组 292.png

Wind speed relationship diagram

组 293.png

Technical Parameters

Media	Type	WxHxD (mm)	Area (m²)	Ffficiency	Airflow (CMH)	lInitial Pressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)※
Box	Box	305x610x292	9.71	M6	1000	50	1700	85
				F7		60		100
				F8		75		115
		610x610x292	19.42	M6	2000	50	3400	85
				F7		60		100
				F8		75		115
	Single-header	592x287x292	8.01	M6	1000	55	1700	90
				F7		65		105
				F8		80		20
		592x592x292	18.13	M6	2000	55	3400	90
				F7		65		105
				F8		80		120
Single-header	Box	305x610x292	9.07	M6	1000	35	1700	65
				F7		40		75
				F8		45		85
		610x610x292	18.15	M6	2000	35	3400	65
				F7		40		75
				F8		45		85
	Single-header	592x287x292	7.56	M6	1000	38	1700	70
				F7		42		80
				F8		50		90
		592x592x292	16.9	M6	2000	38	3400
				F7		42		80
				F8		50		90
