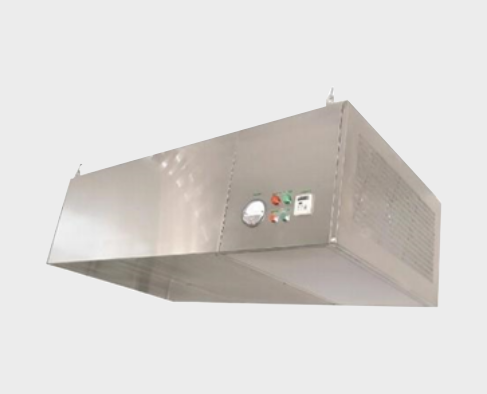

It is flexibly hoisted above the process points requiring high cleanliness to meet the requirements of local high cleanliness
The box can be made of wall panels, spray cold rolled steel or all stainless steel
Can be used alone, or multiple parallel to form a clean laminar flow belt.
Less investment, quick effect, easy installation, low operating costs.
Cleanliness: 100 grade (>0.5um dust ≤3.5 pieces/L
The average wind speed is 0.3-0.55m /s, and the wind speed at 1000mm below the outlet surface is not less than 0.25m/s
Noise <64dB(A)
Mainly used in electronics, biology, medicine, food, precision instruments and other industries of dust-free aseptic operating environment, Provide local high cleanliness working environment.
|
Model number |
Rated air volume (m³/h) |
Overall dimension (mm) |
Work area size (mm) |
Inlet size (mm)
|
HEPA Filter specification (mm)
|
Power source |
Power dissipation (KW) |
|
CR 1220/610 |
1200 |
1360×740×850 |
1220×610 |
400×320 |
610×610×150,2个 |
Single-phase AC 220V/50HZ (110V/60HZ) |
1.0 |
|
CR 1220/915 |
1800 |
1360×1040×850 |
1220×915 |
400×320 |
915×610×150,2个 |
1.0 |
|
|
CR1220/1220 |
2400 |
1360×1360×850 |
1220×1220 |
400×320 |
1209×610×150,2个 |
|
1.3 |
|
CR 2500/915 |
4800 |
3200×1040×600 |
2500×915 |
1000×500 |
915×610×150,4个 |
Three-phase AC 380V/50HZ (200V/60HZ) |
1.8 |
Note: Properties of primary resistance tolerance of±10%Provide special size
