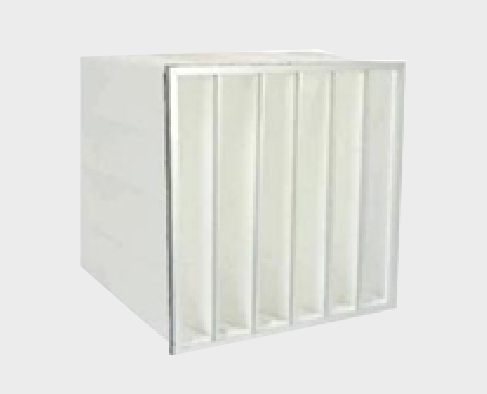

Synthetic Fiber Pocket Filter

【Filter Media】Processed by specialized synthetic and microfiber for pocket fiters material in gradual technology. conforming to the European DIN53438-F1 and American UL900-Class2

【Frame】Aluminum alloy, color coated plate, galvanized,stainless steel, polypropylene

Product details

Product Introduction

Features

Filter Media Is Composited Of High Quality Superfine Synthetic Fibers Made By Melt-Blown Adhesive Technology,
Combined With 10Mm Anti-Burst High-Frequency Welding Structure.The Bag Side Seam Is Made By High-Frequency
Welding To Increase The Structural Rigidity To Ensure Filter Levels Will Not Fall Off When The Airflow Is Suddenly
Opened Or Stopped And To Avoid Secondary Dust Producing,Greatly Enhancing The Comprehensive Performance
Of The Bags.Accompanied By Thin Air Separation Air Bag Structure And Conforming To The Standard V-Shaped
Structure,It Can Stabilize The Airflow To The Greatest Degree To Make Full Use Of The Filter Media And Ensure
The Best Filter Results.Low Resistance And Huge Effective Filtration Area,High Dust Holding Capacity,
Long Service Life.

Applications

Pre-Filtration In Air Conditioning System,Industrial Coating Waste Gas Treatment System

Specification

Type	Ffficieng EN779	Dimensions (mm)	Pockets (Pcs)	Filter Area (m²)	Rated Airflow (m/h)	Initial Resistance (Pa)
CR-HD	G4	595×595×600	6	4.64	3400	40
		495×595×600	5	3.87	2800	40
		295×595×600	3	2.32	1700	40
	M5	595×595×600	6	4.64	3400	45
		495×595×600	5	3.87	2800	45
		295×595×600	3	2.32	1700	45
	M6	595x595×600	6	4.64	3400	55
		495×595×600	5	3.87	2800	55
		295×595×600	3	2.32	1700	55
	F	595×595×600	6	4.64	3400	65
		495×595×600	5	3.87	2800	65
		295×595×600	3	2.32	1700	65
	F8	595×595×600	6	4.64	3400	80
		495×595×600	5	3.87	2800	80
		295×595×600	3	2.32	1700	80
	F9	595×595×600	6	4.64	3400	95
		495×595×600	5	3.87	2800	95
		295×595×600	3	2.32	1700	95

Remarks: (1) Initial resistance tolerance of± 15%(2) Properties of primary resistance tolerance of±10%Provide special size)
