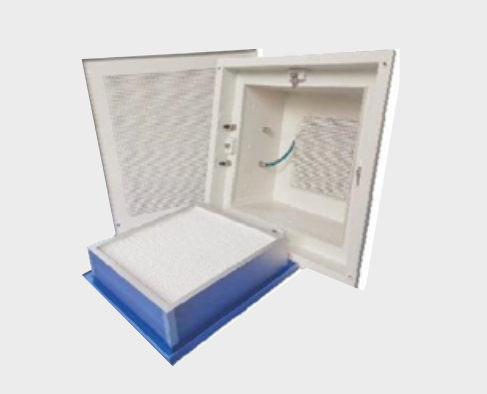

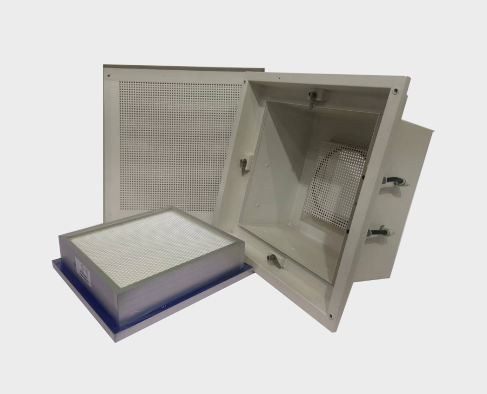

HEPA UNIT

【Box】Spray ofcold rolled steelplate
【The flow equalization plate】Sprayofcold rolled steelplate
【Press block】Galvanized steel sheet
【Protective net】Pensu aluminum plate/spray of cold rolled steel plate/stainless stee
【Regulating valve】Cold rolled plate spray
【Heat insulation cotton】PE
【High efficiency filter】High efficiency filtersamples

Product details

Product Introduction

Capacity

Efficiency: 99.99%、99.995%at 0.3um

Standard: EN1822,Class H13/H14

Operating Conditions

※Temperature: ≤70℃

※ Humidity: ≤100%RH

Applications

Professional Application In Electronic Industry,Photovoltaic Industry,Foodindustry And Other
Laboratory,Clean Room,Operation Room,Pharmaceutical Etc.

Materials

Box	Spray ofcold rolled steelplate
The flow equalization plate	Sprayofcold rolled steelplate
Press block	Galvanized steel sheet
Protective net	Pensu aluminum plate/spray of cold rolled steel plate/stainless stee
Regulating valve	Cold rolled plate spray
Heat insulation cotton	PE
High efficiency filter	High efficiency filtersamples

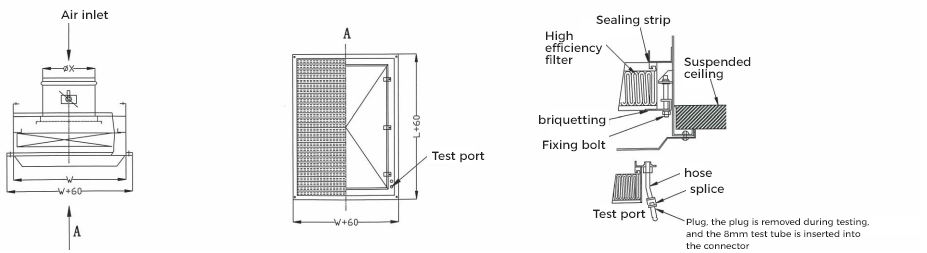

Product structure description

组 327.png

Cracfilter

组 328.png

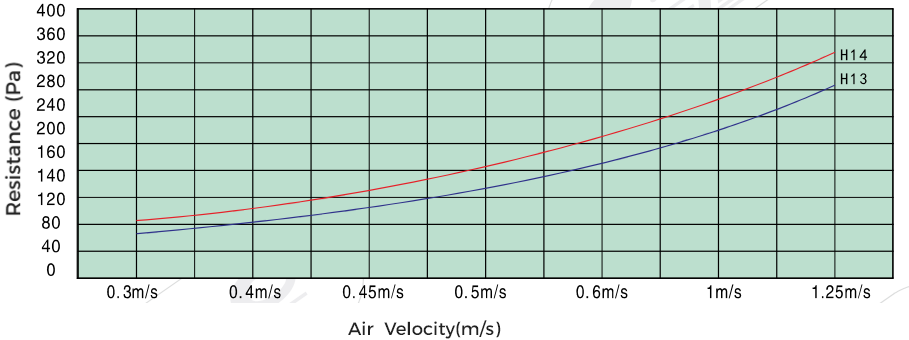

Wind speed relationship diagram

组 329.png

Technical Parameters

Filter size	The box size(topblowing)	The box size(air side)	Nomina volume	circulan interface size	Square interface size	Filter resistance
L×W×H(mm)	L×W×H(mm)	L×W×H(mm)	m3/h	(mm)	(mm)	H13(pa)	H14(pa)
340×340×70	410×410×280	410×410×450	500	250	200×200	280	300
340×340×90	410×410×300	410×410×450	500	250		250	270
484×484×70	554×554×280	554×554×450	1000	3000	300×200	280	300
484×484×90	554×554×300	554×554×450	1000	3000		250	270
610×610x70	680×680×280	680x680×450	1500	350	400×200	280	300
610×610×90	680×680×300	680x680×450	1500	350		250	270
870×570×70	940×640×280	940×640×450	200	350	500×200	249	280
870×570×90	940×640×300	940×640×450	200	350		220	250
1170×570×70	1240×640×280	1240×640×450	2500	φ300*2个	630×200	249	280
1170×570×90	1240×640×300	1240×640×450	2500	φ450*1个		220	250
1260×610×70	1290×680×280	1290×680×450	3000	φ300*2个	630×250	249	280
1260×610×90	1290×680×300	1290×680×450	3000	φ450*1个		220	250
