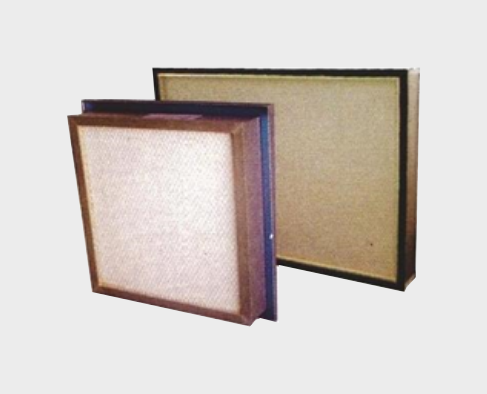

Mini-pleated HEPA/ULPA Gel seal Filter

【Frame】Anodized aluminum

【Frameoptionalthickness】81mm/100mm(Top tank)93mm(Side tank)

【Filtermaterialr】Superfine glass fiber

【Dividingline】Hot melt adhesive

【Sealant】Polyurethane

【Protectivenet】Paint plate network

Product details

Product Introduction

Capacity

9.95%@0.3um (H13)、
99.995%@0.3um(H14)、99.9995%@0.12um(U15)
(EN1822)

Product characteristics

Barrier free design to reduce operating costs;

Wide application range,compact structure;

Tank design, better sealability.

Operating Conditions

※Temperature: 80(1800F)

※ Humidity: ≤100%RH

Applications

Widely used in clean rooms and other on air cleanliness of the strict requirements of the field

Materials

Frame	Anodized aluminum
Frameoptionalthickness	81mm/100mm(Top tank)93mm(Side tank)
Filtermaterial	Superfine glass fiber
Dividingline	Hot melt adhesive
Sealant	Polyurethane
Protectivenet	Paint plate network

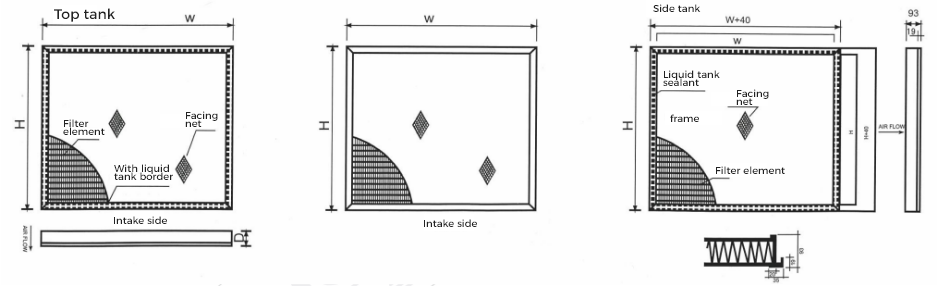

Structure diagram

组 301.png

Cracfilter

组 302.png

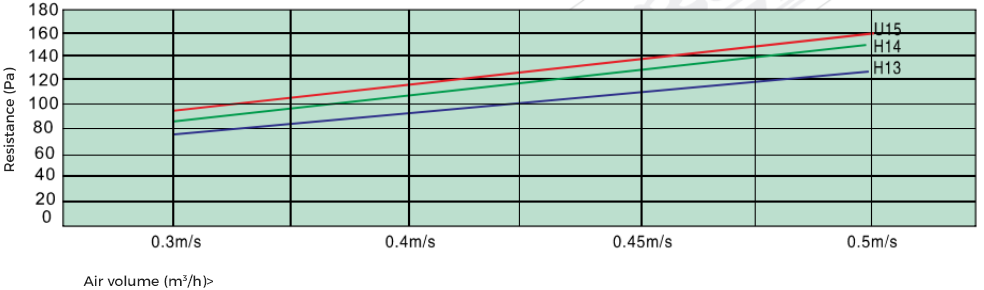

Wind speed relationship diagram

组 303.png

Technical Parameters

Top tank

Nominal size	Actual size	Rated air volume	Surface velocity wind	Rated initial resistance
WXHXD	WXHXD	(m³/h)	(m/s)	H13	H14	U15
2X2	570X570X81	472	0.45	110	125	140
4X2	1170X570X81	1000	0.45	110	125	140
2X1	610X305X81	258	0.45	110	125	140
2X2	610X610X81	545	0.45	110	125	140
2.5X2	762X610X81	687	0.45	110	125	140
3X2	915X610X81	831	0.45	110	125	140
2X2	570X570X100	472	0.45	91	103	115
4X2	1170X570X100	1000	0.45	91	103	115
2X1	610X305X100	258	0.45	91	103	115
2X2	610X610X100	545	0.45	91	103	115
2.5X2	762X610X100	687	0.45	91	103	115
3X2	915X610X100	831	0.45	91	103	115

Side tank

Nominal size	Actual size	Rated air volume	Surface velocity wind	Rated initial resistance
WXHXD	WXHXD	(m:/h)	(m/s)	H13	H14	U15
2X2	570X570X93	472	0.45	91	103	115
4X2	1170X570X93	1000	0.45	91	103	115
2X1	610X305X93	258	0.45	91	103	115
2X2	610X610X93	545	0.45	91	103	115
2.5X²	762X610X93	687	0.45	91	103	115
3X2	915X610X93	831	0.45	91	103	115
