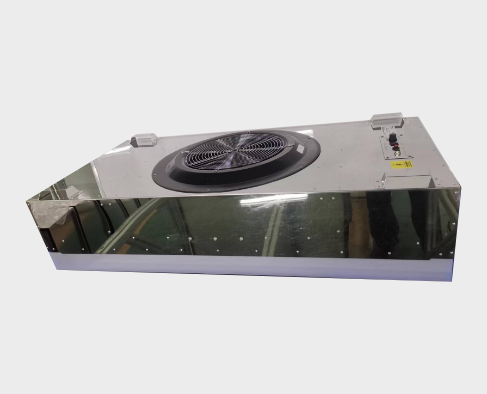

FAN FILTER UNIT

【Material】Steel paint or galvanized plate of Or stainless steel

【Power source】 Ac 110V Or 220v 50Hz or60Hz OrC 220V or 380V 50Hz or60Hz

【Speed control function】Three speed or five speed Or slepless speed regulation(thre-phase power excepl)

【Filtration efficiency】HEPA9999%@0.3umOr ULPA 999999%@0. 12um

Product details

Product Introduction

Capacity

The FFU Is A Combination Of The Blower And Efficient Filter.(HEPA/ULPA Purification Equipment,Widely Environment,
Providing Needs Filter)Aircirculation Used In Clean Room Clean Circulation And Temperature Control Of Clean Room.

Operating Conditions

The match of FFUN applied in laminar flow cleanroom (Lami NAT), turbulent type (Tu rbul ENT)clean room,and
process equipment, handling equipment.Application Applicable To The semiconductor,Electronic information,
Optical industry,Aerospace,Pharmaceutical,Need To Clean production Environment Of The Industry,Which Can
meet The Clean Environment classl~10000Cleanliness Requirements

Capacity

Lightweight structure module design,applicable to all manufacturers ceiling keel (T-Grid)system installation

High performance motor,high pressure,low noise,low energy consumption,can save the operation cost

Special air inlet design,the metal guide duct structure,smooth surface,drag the bottom.
With good sound insulation effect.

The wind guide plate guidel pressure uniform dlfusion,air face velocity average stability

Operation /abnormal indication lamp and operation /abnormal dry contact,easy to control

Single-phase motor can be used as single speed,three speed

Ordered all kinds of special specification products

Can add abnormal interior fault LEDlights

Installation of differential pressure meter,wind speed sensor etc

Can add small remote central monitoring system,or arge-scale remote central monitoring system

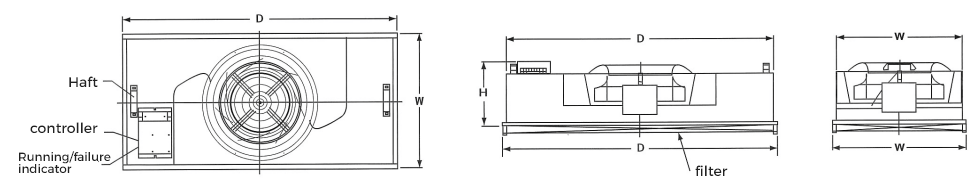

Standard form

组 324.png

Technical Parameters

Type	CRAFU-T16	CRAFU-T25	CRAFU-T34
Keel size	2'*4'	3'*4	4'*4'
box size (mm)	5751175305 WDH	8751175355 WDH	11751175355 WDH
Screen size (mm)	570117050/70 WDH	870117050/70 WDH	1170117050/70 WDH
Air volume	12-16CMM	19-25CMM	21~34CMM
noise	48~54dB(A)	50~56dB(A)	452~58dB(A)
total pressure of the fan	210Pa	220Pa	230Pa
Power consumption	175w	210W	2175w
Weight	35kg	47kg	55kg
Material	Steel paint or galvanized plate of Or stainless steel
Power source	Ac110V Or 220v 50Hz or60Hz OrC220V or 380V 50Hz or60Hz
Speed control function	Three speed or five speed Or slepless speed regulation(thre-phase power excepl)
Filtration efficiency	HEPA9999%@0.3um Or ULPA 999999%@0. 12um
Working state	The power indicator switch operation and fault indicator
Overload protection	Double overload protection controller of motor
Connection mode	Terminal Or male and female connector or power line)
Monitoring poin	Reservation operation and fault dry contact)

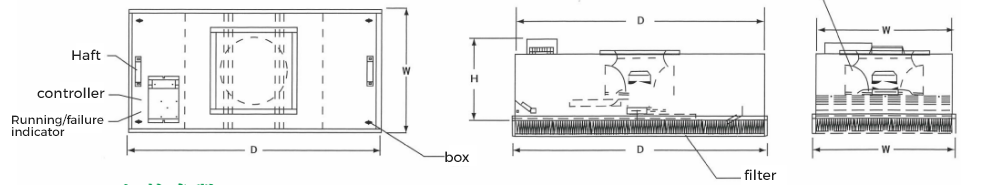

EC FFU

组 324.png

EC FFU Parameters

Type	CREFU--T16	CREFU—-T25	CREFU—-T34
Keel size	2'*4'	3'*4	4'*4'
box size (mm)	5751175305 WDH	8751175355 WDH	11751175355 WDH
Screen size (mm)	570117050/70 WDH	870117050/70 WDH	1170117050/70 WDH
Air volume	12-16CMM	19-25CMM	21~34CMM
noise	48~54dB(A)	50~56dB(A)	52~58dB(A)
total pressure of the fan	210Pa	220Pa	230Pa
Power consumption	90w	130W	160w
Weight	35kg	47kg	55kg
Material	Steel paint or galvanized plate of Or stainless steel
Power source	Ac110V Or 220v 50Hz or60Hz OrC220V or 380V 50Hz or60Hz
Speed control function	Three speed or five speed Or slepless speed regulation(thre-phase power excepl)
Filtration efficiency	HEPA9999%@0.3um Or ULPA 999999%@0. 12um
Working state	The power indicator switch operation and fault indicator
Overload protection	Double overload protection controller of motor
Connection mode	Terminal Or male and female connector or power line)
Monitoring poin	Reservation operation and fault dry contact)
