Aluminium Foil Separator Medium Filter

【Frame】Cardboard,Extruded aluminum, AlumInum sheet,Galvanized steel sheet,Stainless steel sheet

【Media】Glass fiber,Syntheticfiber

【Separator】Hot melt

【Sealant】Polyurethane

【Gasket】CR,EVA,Neoprene, EPDM/Gel seal

Product details

Product Introduction

Capacity

Efficiency: ASHRAE 65%，85%，95%

Standard: EN779 M6,F7,F8

Operating Conditions

※Temperature: ≤70℃

※ Humidity: ≤100%RH

Applications

Main filte J's for commercial &industrial ventilation system.

High relative humidity ventilation systems.

Variable air volume(VAV)ventilation systems.

Ventilation systems with limited installation space.

Materials

Frame	Cardboard,Extruded aluminum, AlumInum sheet,Galvanized steel sheet,Stainless steel sheet
Media	Glass fiber,Syntheticfiber
Separator	Hot melt
Sealant	Polyurethane
Gasket	CR,EVA,Neoprene, EPDM/Gel seal

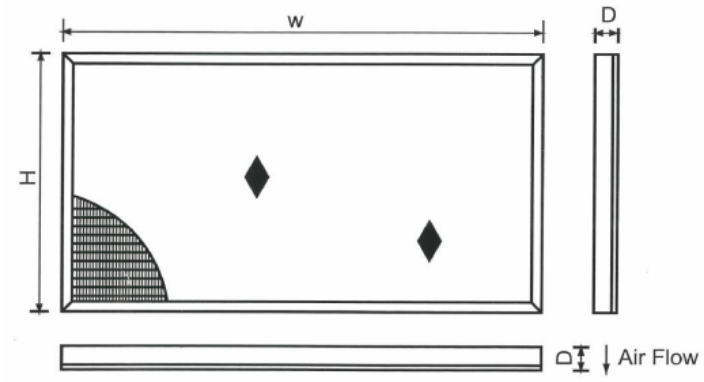

Structure diagram

图像 428.png

Cracfilter

组 298.png

Wind speed relationship diagram

组 299.png

Technical Parameters

Nominal size ( m m )	Actual size ( m m )	Rated air volume	Surface velocity wind	Rated initial resistance				Suggested final resistance
W×H×D	W×H×D	(m³/h)	(m/s)	F6	F7	F8	F9	Pa
24x12x2	610x305x50	400	0.6	85	105	117	140	300
24x24x2	610x610x50	800	0.6	85	105	117	140	300
24x12x3	610x305x70	700	1.0	85	105	117	140	300
24x24x3	610x610x70	1400	1.0	85	105	117	140	300
24x12x3	610x305x80	800	1.15	85	105	117	140	300
24x24x3	610x610x80	1600	1.15	85	105	117	140	300
12x12x4	287x287×90	850	2.5	95	142	164	185	350
24x12x4	592x287×90	1700	2.5	95	142	164	185	350
20x20x4	490x490×90	2300	2.5	95	142	164	185	350
24x24x4	592x592x90	3400	2.5	95	142	164	185	350
24x12x4	592x287x100	1700	2.5	95	142	164	185	350
24x24x4	592x592x100	3400	2.5	95	142	164	185	350
