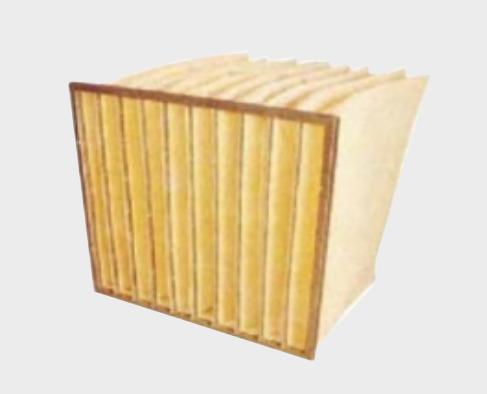

Glass Fiber Pocket Filter

Medium Filter

Purchasing hotline：0086-134-5179-6761

1/1

上一张

下一张

Glass Fiber Pocket Filter

【Frame】 Galvanized steel,Extruded alurninum

【Header】 21mm, 25mm

【Media】 Glass Fiber

Product details

Product Introduction

Advantages

High Dust Holding Capacity And Long Service Jife

Compact Size,Lowenergy Costs

High Efficiency

Large Surface Area

High Agflow Capacity

Operating Conditions

※Temperature: <90℃

※ Humidity: 90%RH

Capacity

Efficiency: ASHRAE45%、65%、85%、95%

Standard: EN779M5、M6、F7、F8

Applications

Packet Filters Have Widespread Application In Central Air Conditioning Ventllation Systems.
Pharmaceuticals.Hospitals,Electronics.Faod Processing,Etc.They Can Also Be Used For
Secondary Fdtration.

Materials

Frame	Double Utype aluminum alloy/stainless steel/galvanized iron(Gl)
The filter frame optional thickness	21mm,25mm,46mm
Filter	Glass fiber
Stiffener	Plastic strip
Connectingangle	High temperature resistant ABS plastic comer/aluminum alloy angle)

Cracfilter

组 282.png

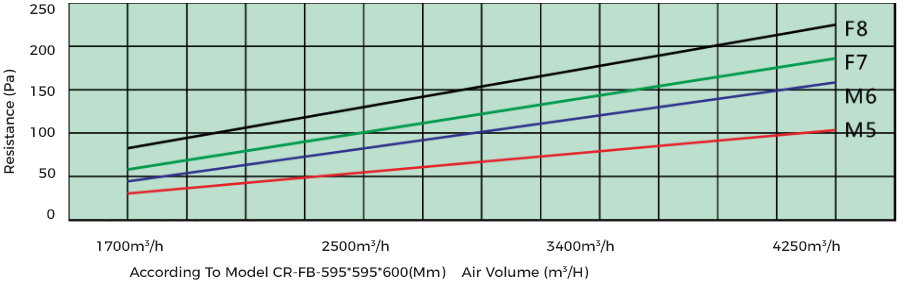

Wind speed relationship diagram

组 283.png

Technical Parameters

WxHxD (mm)	Pockets	Area (m²)	Efficiency	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	InitialPressure (Pa)※
592x592x600	8	6.40	M5	2540	35	3400	70
			M6		50		95
			F7		85		140
			F8		105		175
592x592x600	6	4.97	M5	2540	40	3800	75
			M6		65		105
			F7		95		155
			F8		115		190
490x592x600	5	4.13	M5	2100	40	3140	75
			M6		65		105
			F7		95		155
			F8		115		190
287×592x600	3	2.46	M5	124C	40	1860	75
			M6		65		105
			F7		95		155
			F8		115		190
Recommended final pressure:600Pa
