HT Aluminium Foil Separator HEPA Filter

【Frame】Stainless steel sheet,Galvanized steel sheet

【Media】Glass fiber

【Separator】Aluminum foil

【Sealant】High temperature silicone caulk

【Gasket】High temperature silicone sponge

【Face guard】Aluminum mesh(optional)

Product details

Product Introduction

Capacity

Efficiency : 99.99%、99.995%at03um

Standard: EN1822,Class H13/H14

Operating Conditions

Continueus Temp: 250°C(480°F)/300°C(570°F)/330°C(625°F)

Applications

High temperature paint spray line.

High clean baking booth.

High pu rified baking box.

Food baking booth or room

Usewith hightemperature equipmentsto kill the germ or Virus,such as pharmaceutical factory.

Otherfire safety requirements of ventilation and air conditioning system in high temperature high or ventilation

Materials

Frame	Stainless steel sheet,Galvanized steel sheet
Media	Glass fiber
Separator	Aluminum foil
Sealant	High temperature silicone caulk
Gasket	High temperature silicone sponge
Face guard	Aluminum mesh(optional)

Three Dimensionao View

组 304.png

Cracfilter

组 309.png

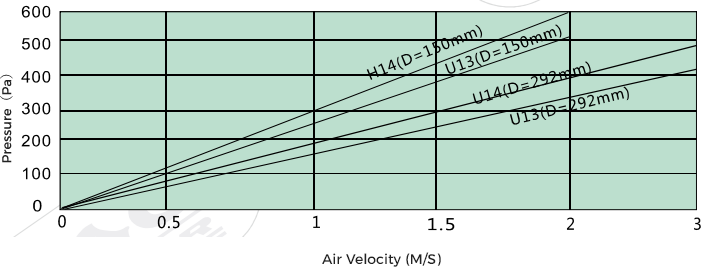

Wind speed relationship diagram

组 310.png

Technical Parameters

WxHxD

(mm)

Area

(m²)

Efficienvy

Airflow

(CMH)

InitialPressure

(Pa)

Airflow

(CMH)

Initial Pressure

(Pa)

305x610x292

6.69

H13

1000

250

1700

350

H14

280

380

610x610x292

13.66

H13

2000

250

3400

350

H14

280

380

915x610x292

20.64

H13

3000

250

5000

350

H14

280

380

1220x610x292

27.91

H13

4000

250

6660

350

H14

280

380

305x610x150

3.20

H13

500

230

1000

330

H14

260

375

610x610x150

6.4

H13

1000

230

2000

330

H14

260

375

915x610x150

9.6

H13

1500

230

3000

330

H14

260

375

1220x610x150

12.81

H13

2000

230

4000

330

H14

260

375

Recom mended final pressure:600pa

Remarks: (1) Initial resistance tolerance of± 15%(2) Properties of primary resistance tolerance of±10%Provide special size)

【Tags】：

I want to customize：HT Aluminium Foil Separator HEPA Filter

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

WxHxD (mm)	Area (m²)	Efficienvy	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)
305x610x292	6.69	H13	1000	250	1700	350
		H14		280		380
610x610x292	13.66	H13	2000	250	3400	350
		H14		280		380
915x610x292	20.64	H13	3000	250	5000	350
		H14		280		380
1220x610x292	27.91	H13	4000	250	6660	350
		H14		280		380
305x610x150	3.20	H13	500	230	1000	330
		H14		260		375
610x610x150	6.4	H13	1000	230	2000	330
		H14		260		375
915x610x150	9.6	H13	1500	230	3000	330
		H14		260		375
1220x610x150	12.81	H13	2000	230	4000	330
		H14		260		375
Recom mended final pressure:600pa
