  • Mini-Pleated HEPA/ULPA Filter
1/1

上一张

下一张

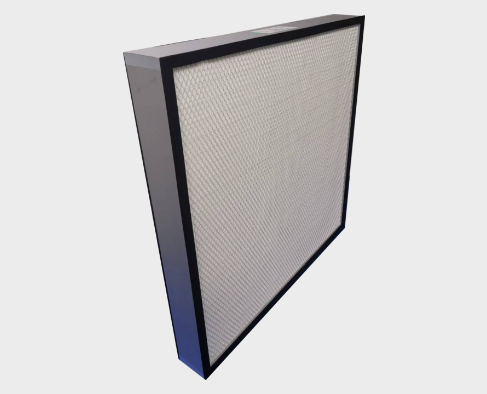

Mini-Pleated HEPA/ULPA Filter

【Frame】Extruded aluminum,AlumInum sheet, Galvanized steel sheet,Stainless steel sheet

【Media】Ulyra fine glass fiber

【Face guard】Aluminium mesh,Coated mesh

【Sealant】Polyurethane

【Gasket】CR,EVA,Neoprene,EPDM/Gel seal

Product details

Product Introduction

Capacity

Efficiency:  DOP99.9997%@0.12um、99.99997%
@0.12um、99%@0.3um  99.99%@0.3um、99.995%@0.3um

Standard: EN1822,Class  U15/U16  H11/H13/H14

Operating Conditions

※Temperature: ≤70℃

※ Humidity: ≤100%RH

Applications

Mini-pleated   ULPA   filters   are   used   for   terminal   filtration   in   environments and   industries   requiring    extremely   high    level   levels    of   cleanliness,e.g.  electronics   and   semiconductor    man   ufacturing,precision    mach   i    nery, pharmaCeutiCalS,hospitals,food processing,etc.

Materials

Frame

Extruded aluminum,AlumInum sheet, Galvanized steel sheet,Stainless steel sheet

Media

Ulyra fine glass fiber

Face guard

Aluminium mesh,Coated mesh

Sealant

Polyurethane

Gasket

CR,EVA,Neoprene,EPDM/Gel seal

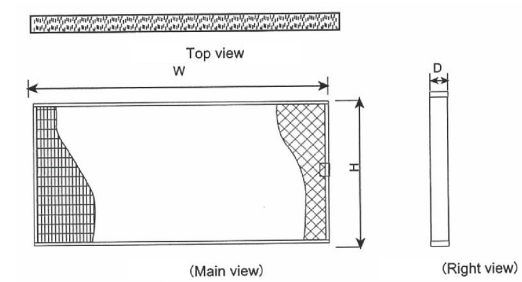

Three Dimensional View

组 294.png

Cracfilter

组 295.png

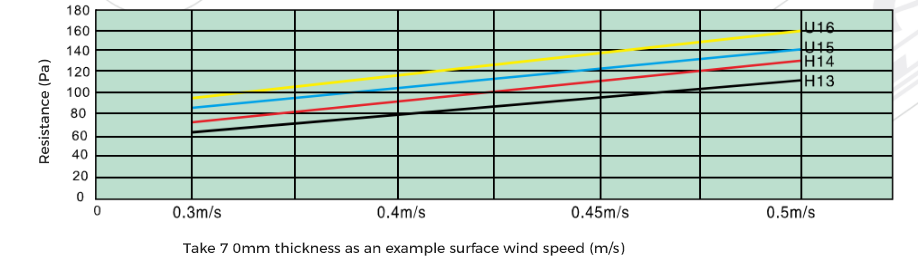

Wind speed relationship diagram

组 296.png

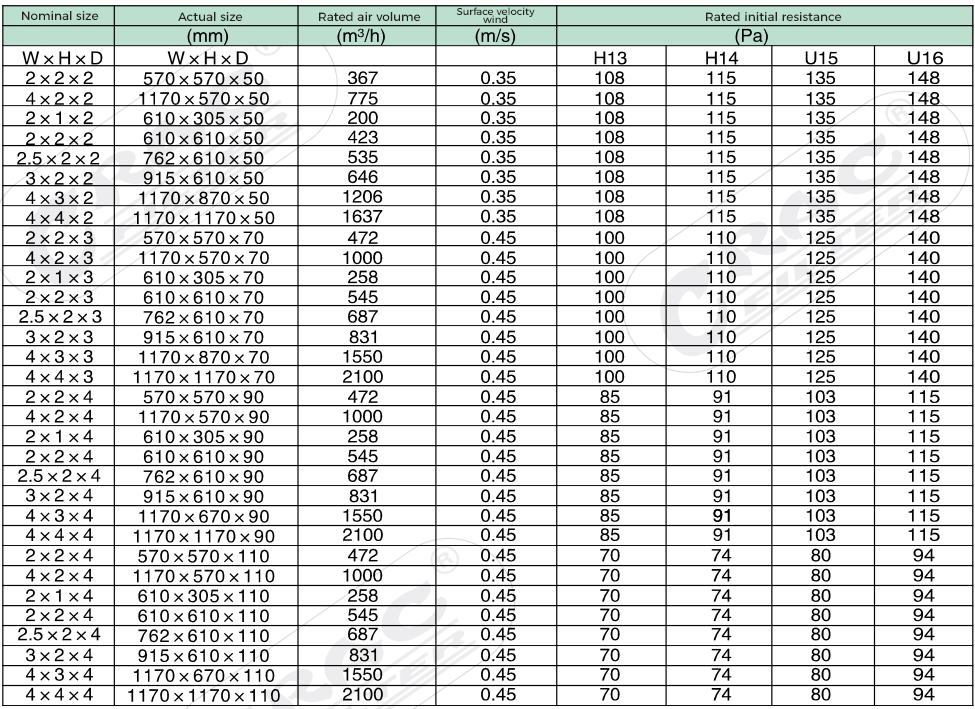

Technical Parameters

组 297.png

Remarks: (1) Initial resistance tolerance of± 15%(2) Properties of primary resistance tolerance of±10%Provide special size)
