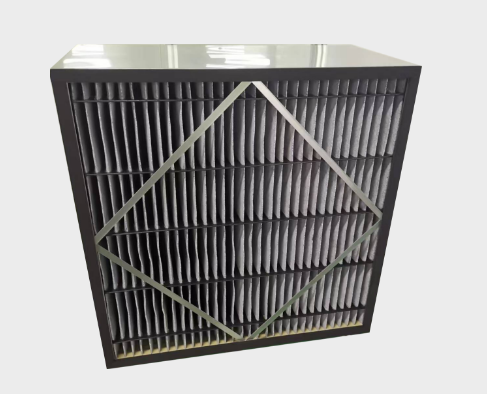

Box-type Activated Carbon Filter

【Frame】Aluminum.Galvanized steel.Stainless steel sheet

【Media】Activated carbon

Product Introduction

Operating Conditions

Temperature   range::O~40C

Humiditys:70%RH

Recommended finalpressure:450Pa

Descripition

Folding  Steucture.Granular  Activated  Arabon  Adsorption Incerased,Large   Ares,High   Efficiency

Activatef Sarbon  Partuclds  Uniformlu  Distributes  In  The  Filter Pressure  Loss  Is  Low.

 Long  Servive  Life

Applications

The Installation Space Is Tight,Need Ventilation And Air Conditioning Systemodor Removal Of Gaseous Pollutants;

Yang   Chang,High-Grade   Hotels,Office   Buildings, Shopping Malls And Othercommercial And Residential Building

Museum,library,art  galleries  and  other  air  conditioning     system

The Comfort Air Conditioning System Optimization Filter

Varieties

Different  Sizes   And  Specifications   Are  Available.
We Have 3 Types Of Carbon Activated Media To Meet Your  Needs:
1.Type  A:VOC   And   Ozone.Etc.
2.Type B:Acidic  Gases(SOZ.NOZ,H,S,HCL,HF,Etc
3.Type C:Aikaline  Gases(NH3,Amines.Etc)

Technical Parameters



WxHxD

(mm)



WxHxD

(mm)



Area

(m²)



Carbon

(kg))



Airflow

(CMH)



InitialPressure

(Pa)



Airflow

(CMH)



InitialPressure

(Pa)※

12×24×12

290×595×292

5.2

5

1000

102

1700

180

24×24×12

295×595×292

10.7

10

2000

102

3400

180

Above  parameters  for  your  reference  only,please  consult  our  technical  person  regarding  the  detailed  specific

parameters  difference.Different  sizes  and  specificatins  are  available.
