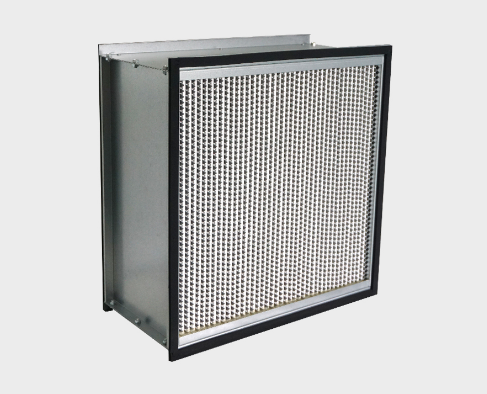

Aluminium Foil Separator Medium Filter

【Frame】 Extruded Aluminum,Aluminum Sheet, Galvanized Steel Sheet,Stainless Steel Sheet

【Media】Glass fiber,Fiber

【Separator】Aluminum Foil,Paper

【Sealant】Polyurethane

【Gasket】CR,EVA,Neoprene,EPDM

Product details

Product Introduction

Capacity

Efficiency: ASHRAE 65%,85%,95%

Standard: EN779,M6,F7,F8

Operating Conditions

Temperature: ≤70℃

Humidity: ≤100%RH

Applications

Clean Room,The Main Fiter Ventilation And Air Conditioning System For Commercial And Industrial. Ventilation And Air Conditioning System With High Humidity.

Materials

Frame	Extruded aluminum,Aluminum sheet, Galvanized steel sheet,Stainless steel sheet
Media	Glass fiber,Fiber
Separator	Aluminum foil,Paper
Sealant	Polyurethane
Gasket	CR,EVA,Neoprene,EPDM

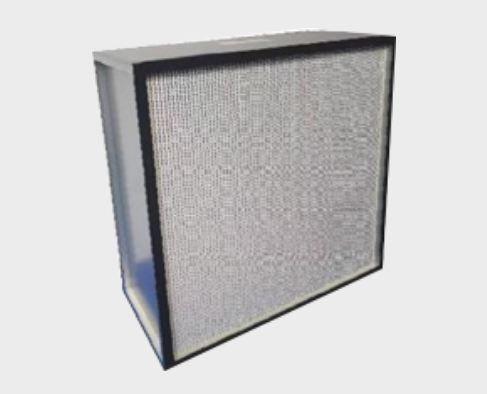

Three Dimensionao View

组 304.png

Cracfilter

组 307.png

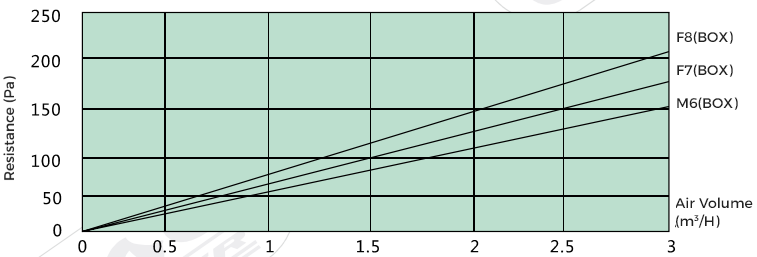

Wind speed relationship diagram

组 308.png

Technical Parameters

Type

WxHxD

(mm)

Area

(m²)

Efficienvy

Airflow

(CMH)

InitialPressure

(Pa)

Airflow

(CMH)

Initial Pressure

(Pa)

BOX

305×610×292

6.69

M6

1000

75

1700

125

F7

90

150

F8

105

175

610×610×292

13.66

M6

2000

75

3400

125

F7

90

150

F8

105

175

Single-header

287×592×292

6.20

M6

1000

82

1700

135

F7

100

165

F8

115

195

592×592×292

12.97

M6

2000

82

3400

135

F7

100

165

F8

115

195

Recommended final pressure:400pa

Remarks: (1) Initial resistance tolerance of± 15%(2) Properties of primary resistance tolerance of±10%Provide special size)

【Tags】：

I want to customize：Aluminium Foil Separator Medium Filter

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

Type	WxHxD (mm)	Area (m²)	Efficienvy	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	Initial Pressure (Pa)
BOX	305×610×292	6.69	M6	1000	75	1700	125
			F7		90		150
			F8		105		175
	610×610×292	13.66	M6	2000	75	3400	125
			F7		90		150
			F8		105		175
Single-header	287×592×292	6.20	M6	1000	82	1700	135
			F7		100		165
			F8		115		195
	592×592×292	12.97	M6	2000	82	3400	135
			F7		100		165
			F8		115		195
Recommended final pressure:400pa
