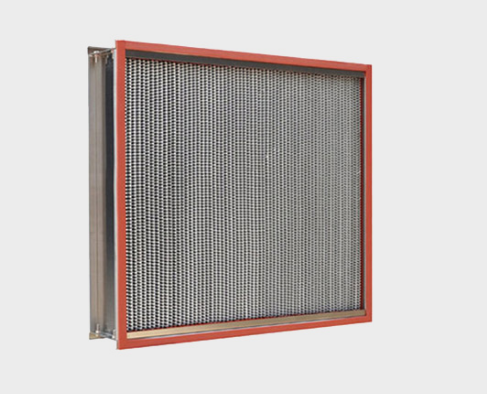

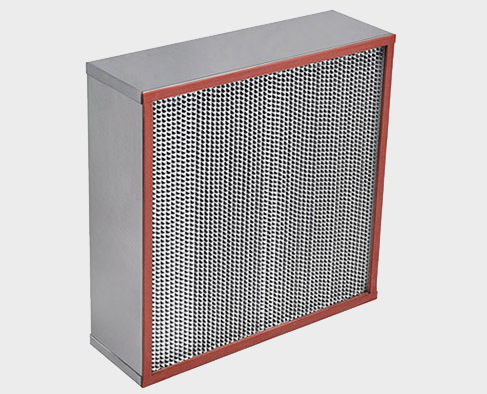

HT Aluminium Foil Separator Medium Filter

【Frame】Stainless steel sheet,Galvanized steel sheet

【Media】Glass fiber

【Separator】Aluminum foil

【Sealant】High temperature silicone caulk,Fiberglass pad

【Gasket】High temperature silicone sponge(optional)

【Face guard】Aluminum mesh(optional)

Product details

Product Introduction

Capacity

Efficiency : ASHRAE 85%,95%

Standard: EN779M6,F7,F8

Operating Conditions

Continueus Temp: 250℃(480°F)/300℃(570°F)/330℃(625°F)

Applications

High temperature paint spray line.

High clean baking booth.

High purified baking box.

Food baking booth or room

Use with high temperature equipments to kill the germ or virus,such as pharmaceutical factory.

Other fire safety requirements of ventilation and air conditioning system in high temperature high or ventilation

Materials

Frame	Stainless steel sheet,Galvanized steel sheet
Media	Glass fiber
Separator	Aluminum foil
Sealant	High temperature silicone caulk,Fiberglass pad
Gasket	High temperature silicone sponge(optional)
Face guard	Aluminum mesh(optional)

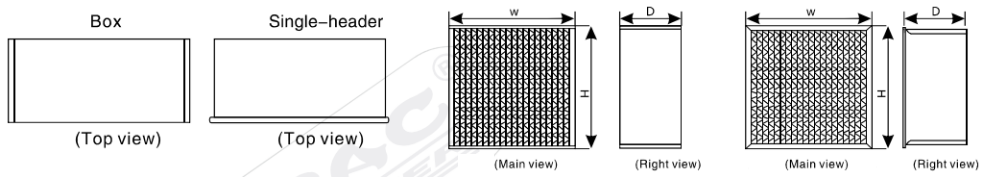

Three Dimensionao View

组 304.png

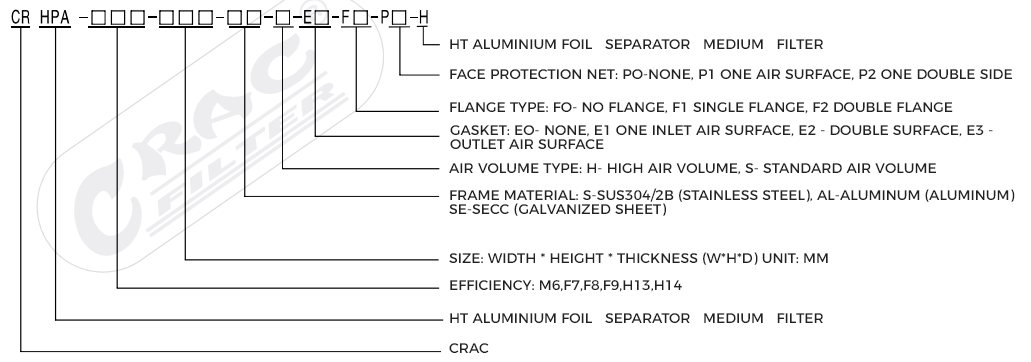

Cracfilter

组 311.png

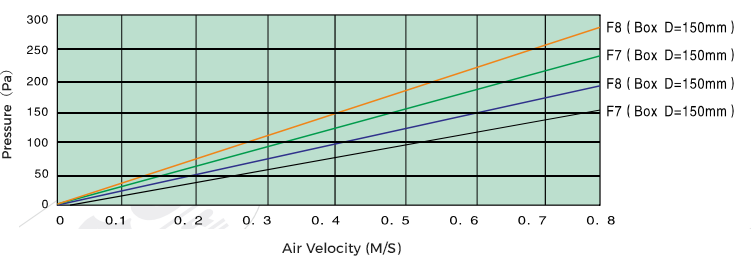

Wind speed relationship diagram

组 312.png

Technical Parameters

Type

WxHxD

(mm)

Area

(m²)

Ffficienvy

Airflow

(CMH)

InitialPressure

(Pa)

Airflow

(CMH)

InitialPressure

(Pa)※

BOX

305×610×292

6.69

F7

1000

80

1700

135

F8

95

160

610×610×292

13.66

F7

2000

80

3400

135

F8

95

160

Single-header

287×592×292

6.20

F7

1000

90

1700

145

F8

105

180

592×592×292

12.97

F7

2000

90

3400

145

F8

105

180

BOX

305×610×150

3.02

F7

700

80

1200

135

F8

95

160

610×610×150

6.16

F7

1500

80

2500

135

F8

95

160

Single-header

287×592×150

2.79

F7

700

90

1200

145

F8

105

180

592×592×150

5.84

F7

1500

90

2500

145

F8

105

180

Recom mended final pressure:400pa

Remarks: (1) Initial resistance tolerance of± 15%(2) Properties of primary resistance tolerance of±10%Provide special size)

【Tags】：

I want to customize：HT Aluminium Foil Separator Medium Filter

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

Type	WxHxD (mm)	Area (m²)	Ffficienvy	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	InitialPressure (Pa)※
BOX	305×610×292	6.69	F7	1000	80	1700	135
			F8		95		160
	610×610×292	13.66	F7	2000	80	3400	135
			F8		95		160
Single-header	287×592×292	6.20	F7	1000	90	1700	145
			F8		105		180
	592×592×292	12.97	F7	2000	90	3400	145
			F8		105		180
BOX	305×610×150	3.02	F7	700	80	1200	135
			F8		95		160
	610×610×150	6.16	F7	1500	80	2500	135
			F8		95		160
Single-header	287×592×150	2.79	F7	700	90	1200	145
			F8		105		180
	592×592×150	5.84	F7	1500	90	2500	145
			F8		105		180
Recom mended final pressure:400pa
