V-type Activated Carbon Filter

Chemical Filter

Purchasing hotline：0086-134-5179-6761

1/4

上一张

下一张

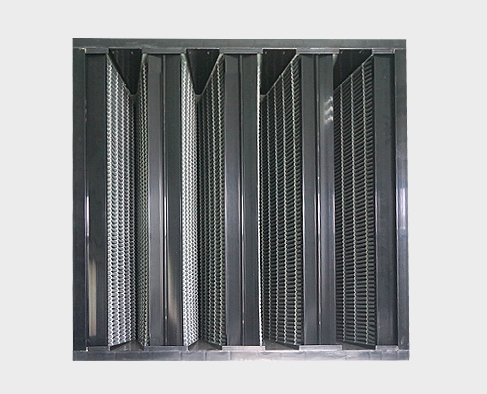

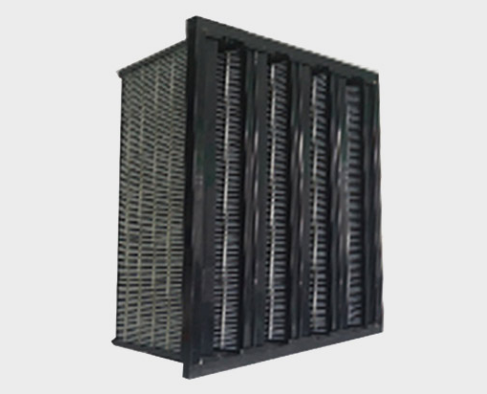

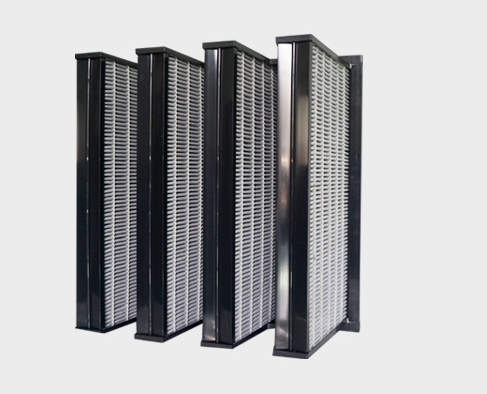

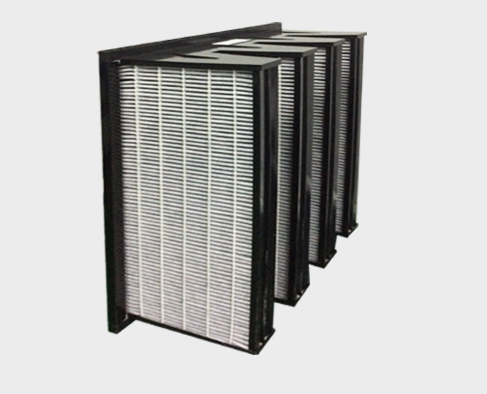

V-type Activated Carbon Filter

【Frame】ABS,Galvanized steel sheet

【Media】 Multi-layer super fine carbon activated+synthetic media

【Sealant】Polvurethane

【Gasket】 CR,EVA,Neoprene,EPDM(Option)

Product details

Product Introduction

Varieties

Different Sizes And Specifications Are Available We Have 3 Types Of Carbon Activated Media To Meet Your Needs:
1.Type A: VOC And Ozone,Etc
2.Type B: Acidic Gases(SO2,NO2,H2S,HCL,HF,Etc)
3.Type C :Alkaline Gases(NH3,Amines.Etc)

Operating Conditions

Temperature range): O~40C

Humidity：≤70%RH

Recommended final pressure): 450Pa

Applications

The Installation Space Is Tight,Need Ventilation And Air Conditioning Systemodor Removal Of Gaseous Pollutants;

Yang Chang,High-Grade Hotels,Office Buildings,Shopping Malls And Othercommercial And Residential Building;

Museum,Library,Art Galleries And Other Air Conditioning System;

The Comfort Air Conditioning System Optimization Filter.

Materials

Frame	ABS,Galvanized steel sheet
Media	Multi-layer super fine carbon activated+synthetic media
Sealant	Polvurethane
Gasket	CR,EVA,Neoprene,EPDM(Option)

Cracfilter

组 319.png

Technical Parameters

WxHxD

(mm)

WxHxD

(mm)

Area

(m²)

Carbon

Airflow

(CMH)

InitialPressure

(Pa)

Airflow

(CMH)

InitialPressure

(Pa)※

12x24x12

287×592x292

4.5

2.0

1000

53

1700

120

20x24x12

492x592x292

8.0

3.5

1660

53

2800

120

24x24x12

592x592x292

9.5

4.0

2000

53

3400

120

【Tags】：

I want to customize：V-type Activated Carbon Filter

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

WxHxD (mm)	WxHxD (mm)	Area (m²)	Carbon	Airflow (CMH)	InitialPressure (Pa)	Airflow (CMH)	InitialPressure (Pa)※
12x24x12	287×592x292	4.5	2.0	1000	53	1700	120
20x24x12	492x592x292	8.0	3.5	1660	53	2800	120
24x24x12	592x592x292	9.5	4.0	2000	53	3400	120
