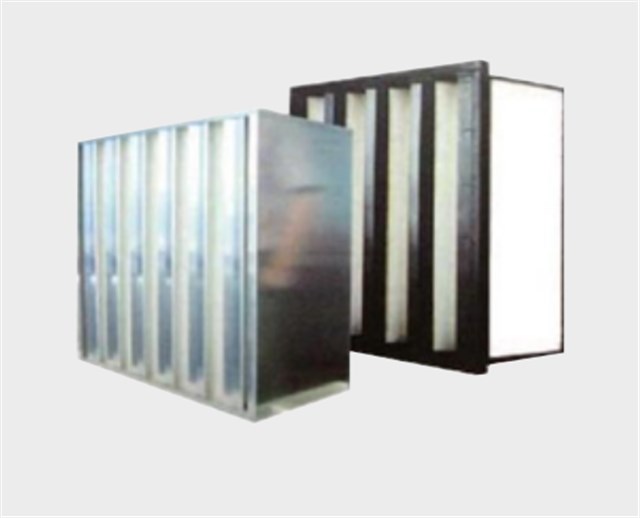

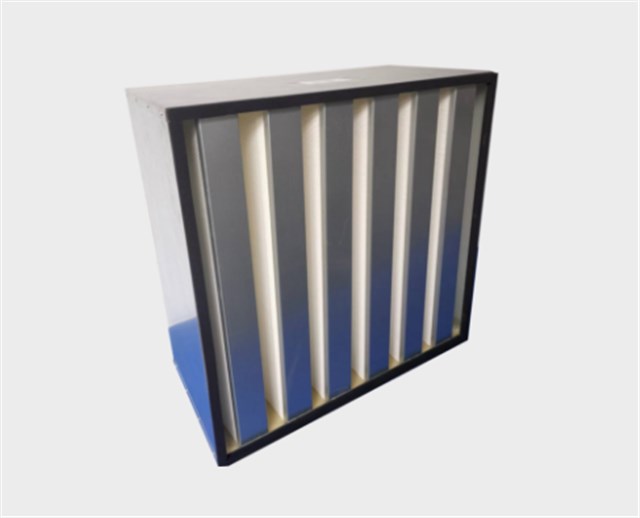

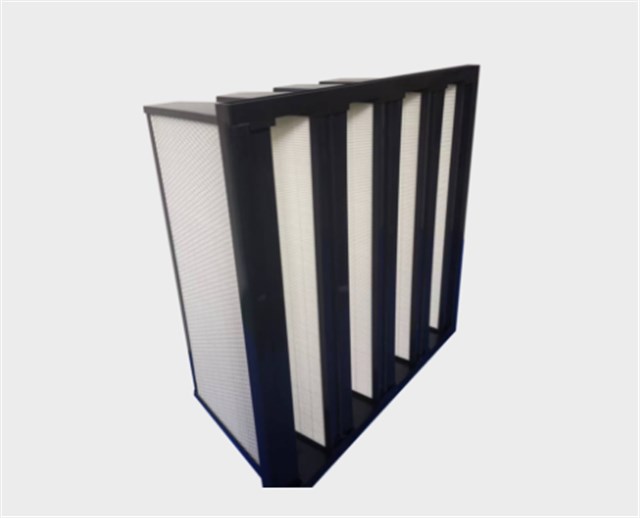

Product Introduction
Capacity
Efficiency: M-MV: M6、F7、F8、F9(EN779)
M-SHV:85%@0.3um(H10),95%@0.3um(H11),
99.5%@0.3um(H12)(EN1882)M-HV:99.95%0.3um
(H13),99.995%0.3um(H14)(EN1882)
Standard:EN1822,classH11/H13/H14/EN779M6/F7/F8
Operating Conditions
※Temperature: ≤70℃
※ Humidity: ≤100%RH
Applications
Clean room,medium efficiency filter ventilation and air conditioning system for commercial and industrial
Ventilation and air conditioning systemin high humidity environment
Variable air volume ventilation and air conditioning system
Widely used in clean rooms and other on air cleanliness of the strict requirements of the field
Materials
|
Frame |
ABS plastic,Aluminum sheet,Galvanized steel sheet |
|
Media |
Glass fiber,Syntheticfiber |
|
Separator |
Hot melt |
|
Sealant |
Polyurethane |
|
Gasket |
CR,EVA,Neoprene,EPDM/Gel seal |

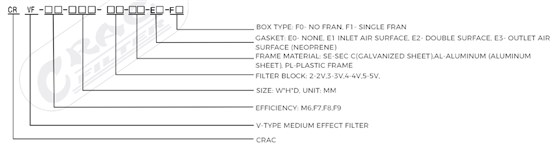

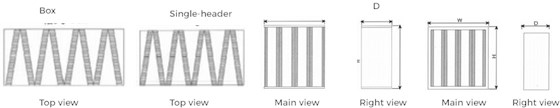

Product structure description
Cracfilterm

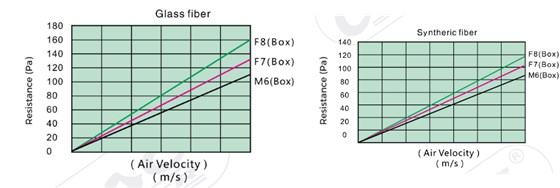

Wind speed relationship diagram
Technical Parameters
|
Media |
Type |
WxHxD (mm) |
Area (m²) |
Ffficiency |
Airflow (CMH) |
lInitial Pressure (Pa) |
Airflow (CMH) |
Initial Pressure (Pa)※ |
|
Box |
Box |
305x610x292 |
9.71 |
M6 |
1000 |
50 |
1700 |
85 |
|
F7 |
60 |
100 |
||||||
|
F8 |
75 |
115 |
||||||
|
610x610x292 |
19.42 |
M6 |
2000 |
50 |
3400 |
85 |
||
|
F7 |
60 |
100 |
||||||
|
F8 |
75 |
115 |
||||||
|
Single-header |
592x287x292 |
8.01 |
M6 |
1000 |
55 |
1700 |
90 |
|
|
F7 |
65 |
105 |
||||||
|
F8 |
80 |
20 |
||||||
|
592x592x292 |
18.13 |
M6 |
2000 |
55 |
3400 |
90 |
||
|
F7 |
65 |
105 |
||||||
|
F8 |
80 |
120 |
||||||
|
Single-header |
Box |
305x610x292 |
9.07 |
M6 |
1000 |
35 |
1700 |
65 |
|
F7 |
40 |
75 |
||||||
|
F8 |
45 |
85 |
||||||
|
610x610x292 |
18.15 |
M6 |
2000 |
35 |
3400 |
65 |
||
|
F7 |
40 |
75 |
||||||
|
F8 |
45 |
85 |
||||||
|
Single-header |
592x287x292 |
7.56 |
M6 |
1000 |
38 |
1700 |
70 |
|
|
F7 |
42 |
80 |
||||||
|
F8 |
50 |
90 |
||||||
|
592x592x292 |
16.9 |
M6 |
2000 |
38 |
3400 |
|
||
|
F7 |
42 |
80 |
||||||
|
F8 |
50 |
90 |
