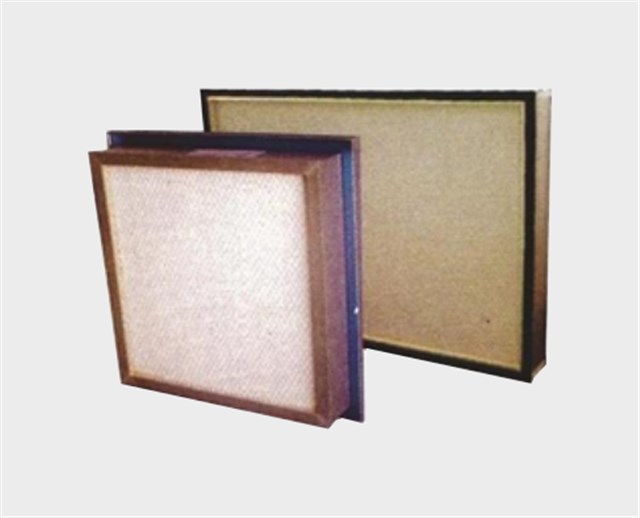

Product Introduction
Capacity
9.95%@0.3um (H13)、
99.995%@0.3um(H14)、99.9995%@0.12um(U15)
(EN1822)
Product characteristics
Barrier free design to reduce operating costs;
Wideapplication range,compact structure;
Tank design, better sealability.
Operating Conditions
※Temperature: 80(1800F)
※ Humidity: ≤100%RH
Applications
Widely used in clean rooms and other on air cleanliness of the strict requirements of the field
Materials
|
Frame |
Anodized aluminum |
|
Frameoptionalthickness |
81mm/100mm(Top tank)93mm(Side tank) |
|
Filtermaterial |
Superfine glass fiber |
|
Dividingline |
Hot melt adhesive |
|
Sealant |
Polyurethane |
|
Protectivenet |
Paint plate network |
Structure diagram
Cracfilterm
Wind speed relationship diagram
Technical Parameters
|
Nominal size ( m m ) |
Actual size ( m m ) |
Rated air volume |
Surface velocity wind |
Rated initial resistance |
Suggested final resistance |
|||
|
W×H×D |
W×H×D |
(m³/h) |
(m/s) |
F6 |
F7 |
F8 |
F9 |
Pa |
|
24x12x2 |
610x305x50 |
400 |
0.6 |
85 |
105 |
117 |
140 |
300 |
|
24x24x2 |
610x610x50 |
800 |
0.6 |
85 |
105 |
117 |
140 |
300 |
|
24x12x3 |
610x305x70 |
700 |
1.0 |
85 |
105 |
117 |
140 |
300 |
|
24x24x3 |
610x610x70 |
1400 |
1.0 |
85 |
105 |
117 |
140 |
300 |
|
24x12x3 |
610x305x80 |
800 |
1.15 |
85 |
105 |
117 |
140 |
300 |
|
24x24x3 |
610x610x80 |
1600 |
1.15 |
85 |
105 |
117 |
140 |
300 |
|
12x12x4 |
287x287×90 |
850 |
2.5 |
95 |
142 |
164 |
185 |
350 |
|
24x12x4 |
592x287×90 |
1700 |
2.5 |
95 |
142 |
164 |
185 |
350 |
|
20x20x4 |
490x490×90 |
2300 |
2.5 |
95 |
142 |
164 |
185 |
350 |
|
24x24x4 |
592x592x90 |
3400 |
2.5 |
95 |
142 |
164 |
185 |
350 |
|
24x12x4 |
592x287x100 |
1700 |
2.5 |
95 |
142 |
164 |
185 |
350 |
|
24x24x4 |
592x592x100 |
3400 |
2.5 |
95 |
142 |
164 |
185 |
350 |
