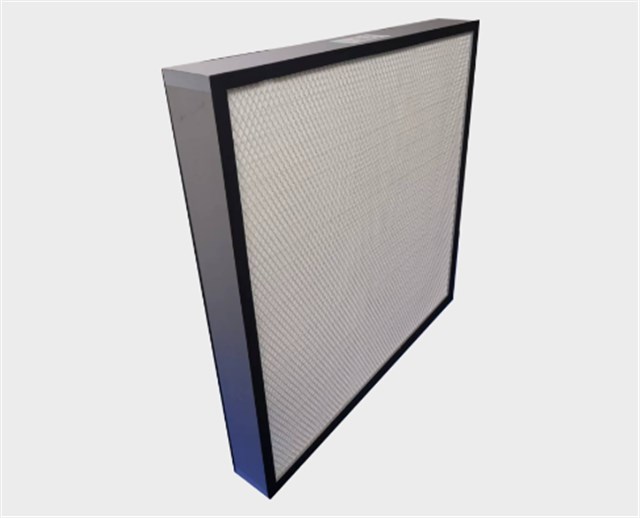

Product Introduction
Capacity
Efficiency: DOP99.9997%@0.12um、99.99997%
@0.12um、99%@0.3um 99.99%@0.3um、99.995%@0.3um
Standard: EN1822,Class U15/U16 H11/H13/H14
Operating Conditions
※Temperature: ≤70℃
※ Humidity: ≤100%RH
Applications
Mini-pleated ULPA filters are used for terminal filtration in environments and industries requiring extremely high level levels of cleanliness,e.g. electronics and semiconductor man ufacturing,precision mach i nery, pharmaCeutiCalS,hospitals,food processing,etc.
Materials
|
Frame |
Extruded aluminum,AlumInum sheet, Galvanized steel sheet,Stainless steel sheet |
|
Media |
Ulyra fine glass fiber |
|
Face guard |
Aluminium mesh,Coated mesh |
|
Sealant |
Polyurethane |
|
Gasket |
CR,EVA,Neoprene,EPDM/Gel seal |

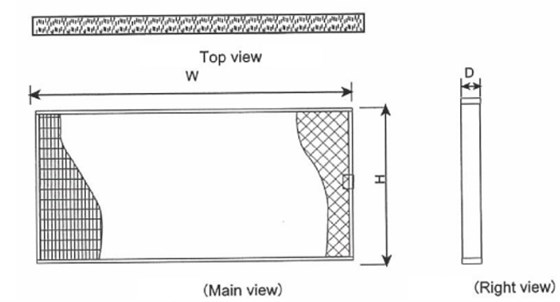

Three Dimensional View
Cracfilterm

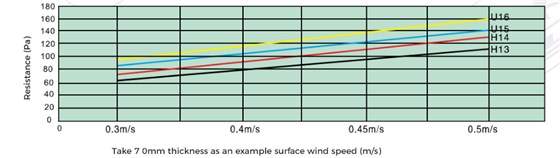

Wind speed relationship diagram

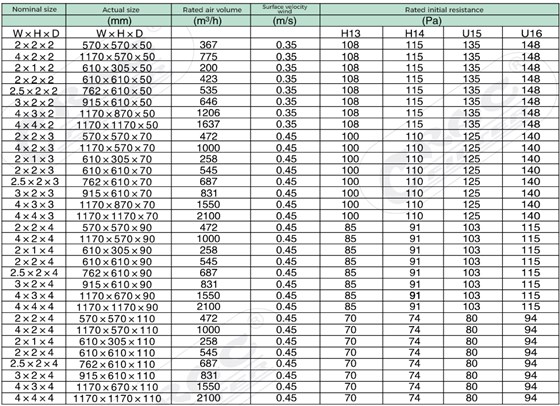

Technical Parameters
