Product Introduction
Property
Efficiency :ASHRAE 45%, 65%, 85%, 95%
Standard :EN779 M5, M6, F7, F8, F9
Operating Conditions
※ Temperature: ≤90℃
※Humidity: ≤90%RH

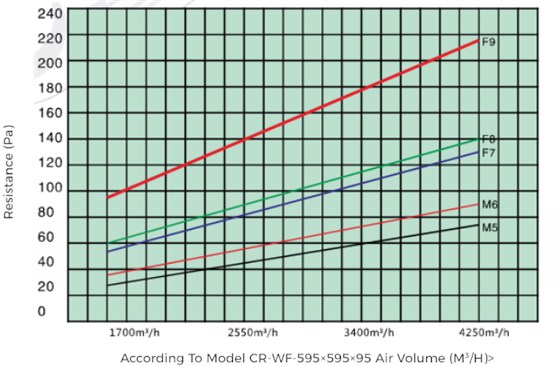

Wind Velocity Relationship Diagram
Cracfilter
Technical Parameters
|
WxHxD(mm) |
Pockets |
Area(m²) |
Efficiency |
Airflow(CMH) |
Initialpressure(Pa) |
Airflow(CMH) |
InitialPressure(Pa)※ |
|
592×592×600 |
8 |
6.4 |
M5 |
2540 |
30 |
3400 |
45 |
|
M6 |
40 |
60 |
|||||
|
F7 |
75 |
110 |
|||||
|
F8 |
85 |
130 |
|||||
|
592×592×600 |
6 |
4.97 |
M5 |
2540 |
35 |
3800 |
50 |
|
M6 |
50 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
F8 |
90 |
135 |
|||||
|
490×592×600 |
5 |
4.13 |
M5 |
2100 |
35 |
3140 |
50 |
|
M6 |
50 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
E8 |
90 |
135 |
|||||
|
287×592×600 |
3 |
1.65 |
M5 |
1240 |
35 |
1860 |
50 |
|
M6 |
45 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
F8 |
90 |
135 |
|||||
|
592×592×381 |
6 |
6.1 |
M5 |
2250 |
30 |
3250 |
40 |
|
M6 |
45 |
55 |
|||||
|
F7 |
75 |
110 |
|||||
|
F8 |
80 |
140 |
|||||
|
490×592×381 |
5 |
3.8 |
M5 |
1850 |
25 |
2750 |
15 |
|
M6 |
35 |
50 |
|||||
|
F7 |
75 |
130 |
|||||
|
F8 |
90 |
145 |
|||||
|
287×592×381 |
3 |
2.1 |
M5 |
1050 |
20 |
1650 |
30 |
|
M6 |
40 |
55 |
|||||
|
F7 |
70 |
135 |
|||||
|
F8 |
75 |
150 |
Recommended final pressure:450Pa
Note: (1) Initial resistance tolerance of performance is ±15%(2)Properties of primary resistance tolerance of±10%Provide special size)
