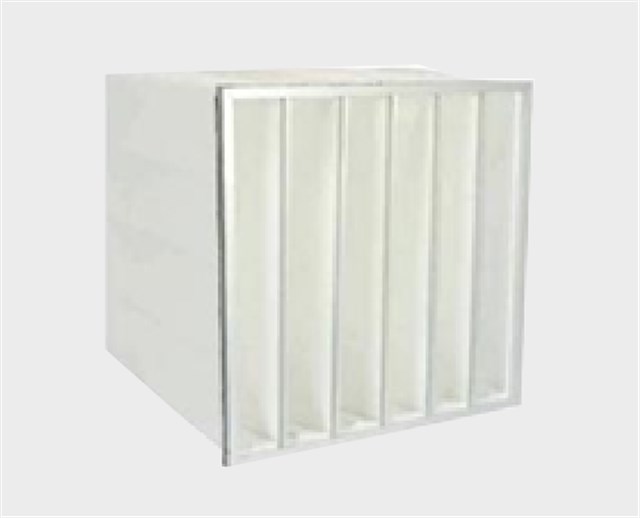

Product Introduction
Features
Filter Media Is Composited Of High Quality Superfine Synthetic Fibers Made By Melt-Blown Adhesive Technology,
Combined With 10Mm Anti-Burst High-Frequency Welding Structure.The Bag Side Seam Is Made By High-Frequency
Welding To Increase The Structural Rigidity To Ensure Filter Levels Will Not Fall Off When The Airflow Is Suddenly
Opened Or Stopped And To Avoid Secondary Dust Producing,Greatly Enhancing The Comprehensive Performance
Of The Bags.Accompanied By Thin Air Separation Air Bag Structure And Conforming To The Standard V-Shaped
Structure,It Can Stabilize The Airflow To The Greatest Degree To Make Full Use Of The Filter Media And Ensure
The Best Filter Results.Low Resistance And Huge Effective Filtration Area,High Dust Holding Capacity,
Long Service Life.
Applications
Pre-Filtration In Air Conditioning System,Industrial Coating Waste Gas Treatment System
Specification
|
Type |
Ffficieng EN779 |
Dimensions (mm) |
Pockets (Pcs) |
Filter Area (m²) |
Rated Airflow (m/h) |
Initial Resistance (Pa) |
|
CR-HD |
G4 |
595×595×600 |
6 |
4.64 |
3400 |
40 |
|
495×595×600 |
5 |
3.87 |
2800 |
40 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
40 |
||
|
M5 |
595×595×600 |
6 |
4.64 |
3400 |
45 |
|
|
495×595×600 |
5 |
3.87 |
2800 |
45 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
45 |
||
|
M6 |
595x595×600 |
6 |
4.64 |
3400 |
55 |
|
|
495×595×600 |
5 |
3.87 |
2800 |
55 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
55 |
||
|
F |
595×595×600 |
6 |
4.64 |
3400 |
65 |
|
|
495×595×600 |
5 |
3.87 |
2800 |
65 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
65 |
||
|
F8 |
595×595×600 |
6 |
4.64 |
3400 |
80 |
|
|
495×595×600 |
5 |
3.87 |
2800 |
80 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
80 |
||
|
F9 |
595×595×600 |
6 |
4.64 |
3400 |
95 |
|
|
495×595×600 |
5 |
3.87 |
2800 |
95 |
||
|
295×595×600 |
3 |
2.32 |
1700 |
95 |
