Product Introduction
Capacity
Efficiency: ASHRAE 85%,95%
Standard:EN779M6,F7,F8
Operating Conditions
ContinueusTemp: 250℃(480°F)/300℃(570°F)/330℃(625°F)
Applications
High temperature paint spray line.
High clean baking booth.
Highpurifiedbakingbox.
Foodbakingboothorroom
Use with high temperature equipments to kill the germ or virus,such as pharmaceutical factory.
Other fire safety requirements of ventilation and air conditioning system in high temperature high or ventilation
Materials
|
Frame |
Stainless steel sheet,Galvanized steel sheet |
|
Media |
Glass fiber |
|
Separator |
Aluminum foil |
|
Sealant |
High temperature silicone caulk,Fiberglass pad |
|
Gasket |
High temperature silicone sponge(optional) |
|
Face guard |
Aluminum mesh(optional) |

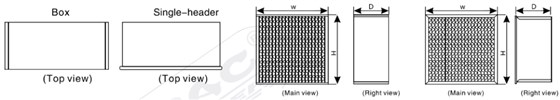

Three Dimensionao View
Cracfilterm

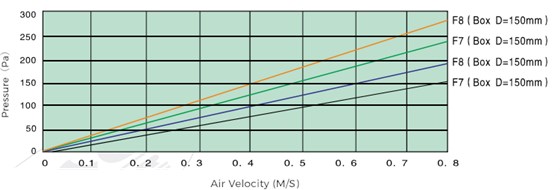

Wind speed relationship diagram
