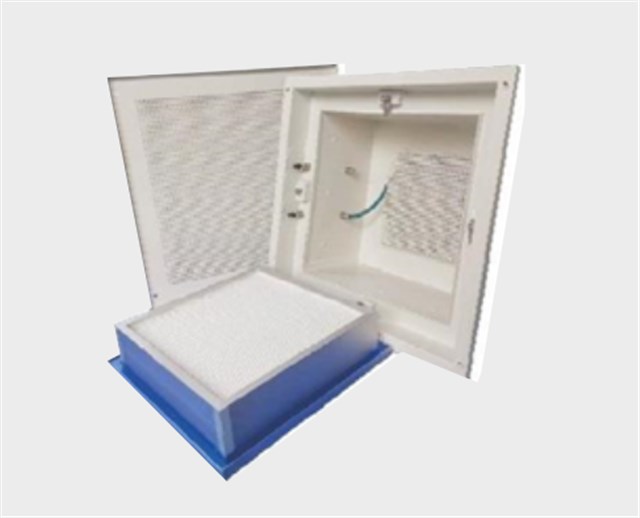

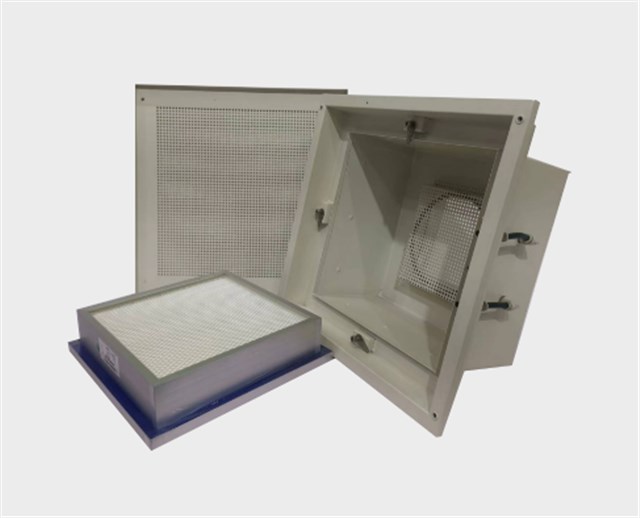

Product Introduction
Capacity
Efficiency: 99.99%、99.995%at 0.3um
Standard: EN1822,Class H13/H14
Operating Conditions
※Temperature: ≤70℃
※ Humidity: ≤100%RH
Applications
Professional Application In Electronic Industry,Photovoltaic Industry,Foodindustry And Other
Laboratory,Clean Room,Operation Room,Pharmaceutical Etc.
Materials
|
Box |
Spray ofcold rolled steelplate |
|
The flow equalization plate |
Sprayofcold rolled steelplate |
|
Press block |
Galvanized steel sheet |
|
Protective net |
Pensu aluminum plate/spray of cold rolled steel plate/stainless stee |
|
Regulating valve |
Cold rolled plate spray |
|
Heat insulation cotton |
PE |
|
High efficiency filter |
High efficiency filtersamples |
Product structure description
Cracfilterm
Wind speed relationship diagram
Technical Parameters
|
Media |
Type |
WxHxD (mm) |
Area (m²) |
Ffficiency |
Airflow (CMH) |
lInitial Pressure (Pa) |
Airflow (CMH) |
Initial Pressure (Pa)※ |
|
Box |
Box |
305x610x292 |
9.71 |
M6 |
1000 |
50 |
1700 |
85 |
|
F7 |
60 |
100 |
||||||
|
F8 |
75 |
115 |
||||||
|
610x610x292 |
19.42 |
M6 |
2000 |
50 |
3400 |
85 |
||
|
F7 |
60 |
100 |
||||||
|
F8 |
75 |
115 |
||||||
|
Single-header |
592x287x292 |
8.01 |
M6 |
1000 |
55 |
1700 |
90 |
|
|
F7 |
65 |
105 |
||||||
|
F8 |
80 |
20 |
||||||
|
592x592x292 |
18.13 |
M6 |
2000 |
55 |
3400 |
90 |
||
|
F7 |
65 |
105 |
||||||
|
F8 |
80 |
120 |
||||||
|
Single-header |
Box |
305x610x292 |
9.07 |
M6 |
1000 |
35 |
1700 |
65 |
|
F7 |
40 |
75 |
||||||
|
F8 |
45 |
85 |
||||||
|
610x610x292 |
18.15 |
M6 |
2000 |
35 |
3400 |
65 |
||
|
F7 |
40 |
75 |
||||||
|
F8 |
45 |
85 |
||||||
|
Single-header |
592x287x292 |
7.56 |
M6 |
1000 |
38 |
1700 |
70 |
|
|
F7 |
42 |
80 |
||||||
|
F8 |
50 |
90 |
||||||
|
592x592x292 |
16.9 |
M6 |
2000 |
38 |
3400 |
|
||
|
F7 |
42 |
80 |
||||||
|
F8 |
50 |
90 |
