Product feature

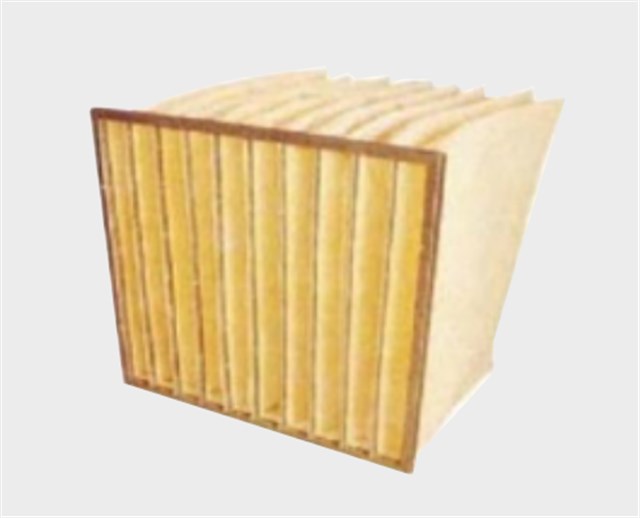

Medium effect bag filter using synthetic fiber "V" type ultrasonic suture, to avoid the old glass fiber material may cause harm to the human body,
the filter material contains anti-static fiber, good filtration of air dust particles, with a large filter area, large dust capacity, long service life and
other characteristics.
Technical Parameters
Model number
dimension(mm)
Rated air volume (m3/h) Initial resistance (Pa)
Filter area (m2)
Filtration efficiency (EN779)
CRAC-ZDSG-001
287*287*381
600/50
0.89
F5
CRAC-ZDSG-002
592*592*381
2050/50
3.18
F5
CRAC-ZDSG-003
490*592*500
2250/50
3.48
F5
CRAC-ZDSG-004
287*287*381
600/80
0.89
F7
CRAC-ZDSG-005
490*592*500
2250/80
3.48
F7
CRAC-ZDSG-006
592*592*500
4250/80
6.56
F7
CRAC-ZDSG-007
287*287*381
600/120
0.89
F9
CRAC-ZDSG-008
490*592*500
2250/120
3.18
F9
CRAC-ZDSG-009
592*592*500
4250/120
6.56
F9
Use Material List
| Filter material | Chemical fiber Synthetic fiber glass fiber |
| Outer frame | Aluminum galvanized frame Plastic Frame (ABS) |
| Filter bag type | Ultrasonic bag clothes car sewing bag |
|
Optional thickness of aluminum profile (mm) |
Aluminum profile: 21 25 46 Plastic frame 25 |
| Service temperature | 50℃ |
| Service humidity |
100% |
