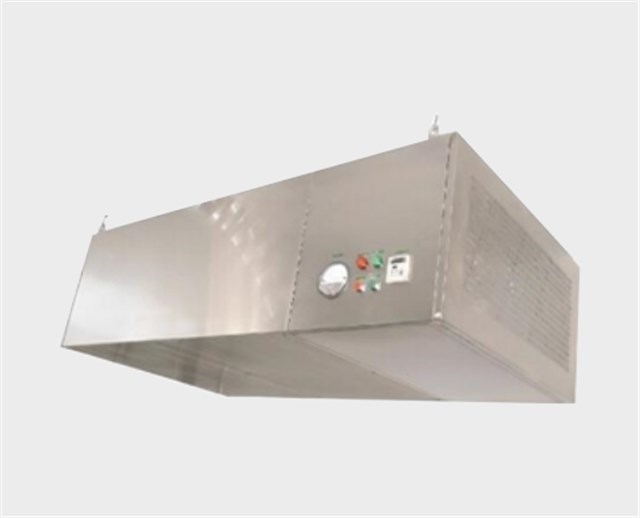

Product Introduction
Applications
Mainly used in electronics, biology, medicine, food, precision instruments and other industries of dust-free aseptic operating environment, Provide local high cleanliness working environment.
Technical Parameters
Model number
Rated air volume (m³/h)
Overall dimension
(mm)
Work area size (mm)
Inlet size
(mm)
HEPA Filter specification
(mm)
Power source
Power dissipation
(KW)
CR 1220/610
1200
1360×740×850
1220×610
400×320
610×610×150,2个
Single-phase AC
220V/50HZ
(110V/60HZ)
1.0
CR 1220/915
1800
1360×1040×850
1220×915
400×320
915×610×150,2个
1.0
CR1220/1220
2400
1360×1360×850
1220×1220
400×320
1209×610×150,2个
1.3
CR 2500/915
4800
3200×1040×600
2500×915
1000×500
915×610×150,4个
Three-phase AC
380V/50HZ
(200V/60HZ)
1.8
Model number
Rated air volume (m³/h)
Overall dimension
(mm)
Work area size (mm)
Inlet size
(mm)
HEPA Filter specification
(mm)
Power source
Power dissipation
(KW)
CR 1220/610
1200
1360×740×850
1220×610
400×320
610×610×150,2个
Single-phase AC
220V/50HZ
(110V/60HZ)
1.0
CR 1220/915
1800
1360×1040×850
1220×915
400×320
915×610×150,2个
1.0
CR1220/1220
2400
1360×1360×850
1220×1220
400×320
1209×610×150,2个
1.3
CR 2500/915
4800
3200×1040×600
2500×915
1000×500
915×610×150,4个
Three-phase AC
380V/50HZ
(200V/60HZ)
1.8
