Product Introduction
Capacity
Efficiency: DOP99%,99.99%,99.995%@0.3um
Standard:EN1822,classH13/H14
Operating Conditions
Temperature: 70℃
Humidity: ≤100%RH
Applications

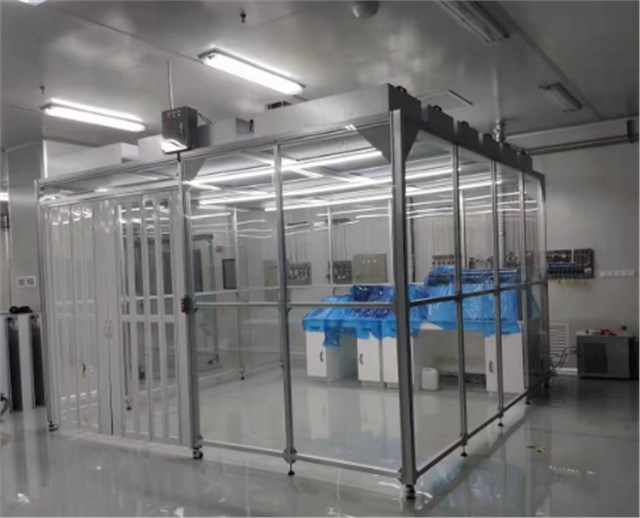

HEPA filters for hospitals,electronic factory,semiconductor manufacturing plant,
clean room cleanliness demanding occasions
Materials
|
Frame |
Galvanized steel sheet,Stainless steel sheet |
|
Top cover |
Galvanized steel sheet |
|
Distributor |
Punched steel sheet |
|
Insulation material |
PE foam |
|
Media |
Ulyra fine glass fiber |
|
Face guard |
Aluminium mesh.Coated mesh |
|
Sealant |
Polyurethane |
|
Gasket |
CR,EVA,Neoprene,EPDM |

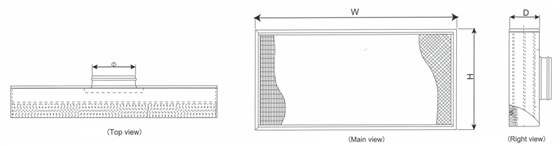

Three Dimensionao View
Cracfilterm
Wind speed relationship diagram
Technical Parameters
WxHxD
(mm)
Area
(m²)
Efficienvy
Airflow
(CMH)
InitialPressure
(Pa)
Airflow
(CMH)
Initial Pressure
(Pa)
600×600×150
9.22
U15
450
115
580
145
U16
130
165
10.6
H13
85
110
H14
95
125
610×610×150
9.5
U15
465
15
600
145
U16
130
165
10.97
H13
85
110
14
95
1170×570×150
17.4
840
15
1080
l40
J16
30
165
20.08
H13
85
10
14
95
25
1210×600×150
19
J15
915
15
1175
145
J16
130
165
21.88
3
85
110
H14
95
125
1220×610×150
19.52
U15
935
115
1205
145
16
130
165
22.46
3
85
110
H14
95
125
The windpipe size 14“(350mm),12"(diameter 300mm),10"(250mm),windpipeand valve;
The above parameters is for reference only,the production of special sizeaccording to customer requirements
