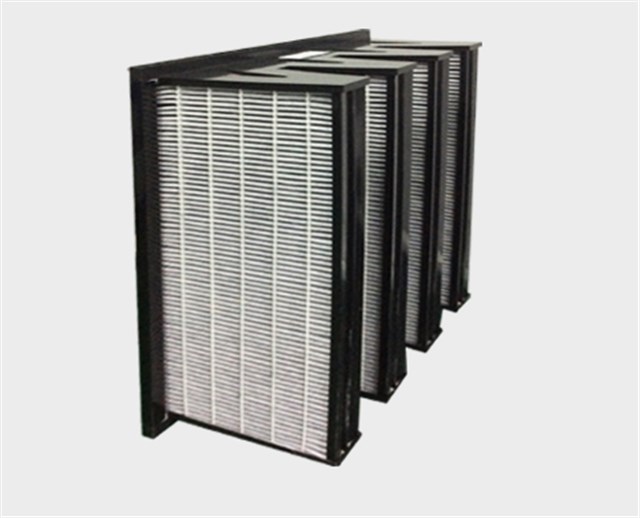

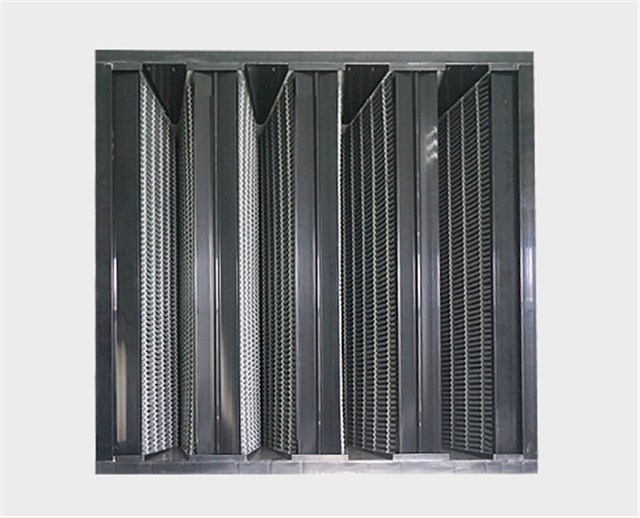

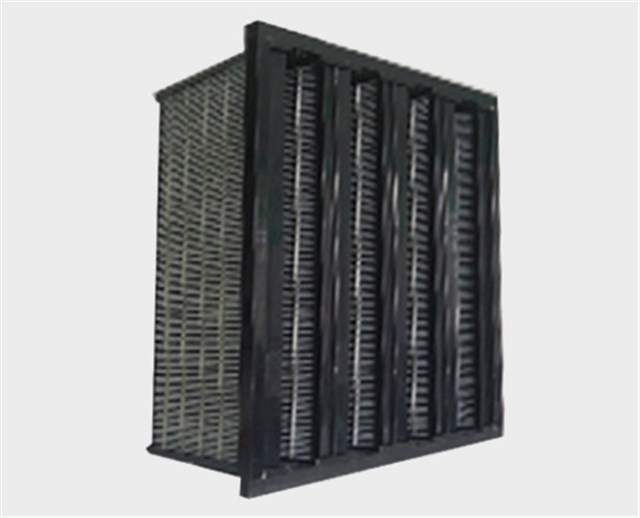

Product Introduction
Varieties
Different Sizes And Specifications Are Available We Have 3 Types Of Carbon Activated Media To Meet Your Needs:
1.Type A: VOC And Ozone,Etc
2.Type B: Acidic Gases(SO2,NO2,H2S,HCL,HF,Etc)
3.Type C :Alkaline Gases(NH3,Amines.Etc)
Operating Conditions
Temperaturerange): O~40C
Humidity：≤70%RH
Recommended final pressure): 450Pa
Applications
The Installation Space Is Tight,Need Ventilation And Air Conditioning Systemodor Removal Of Gaseous Pollutants;
Yang Chang,High-Grade Hotels,Office Buildings,Shopping Malls And Othercommercial And Residential Building;
Museum,Library,Art Galleries And Other Air Conditioning System;
The Comfort Air Conditioning System Optimization Filter.
Materials
|
Frame |
ABS,Galvanized steel sheet |
|
Media |
Multi-layer super fine carbon activated+synthetic media |
|
Sealant |
Polvurethane |
|
Gasket |
CR,EVA,Neoprene,EPDM(Option) |

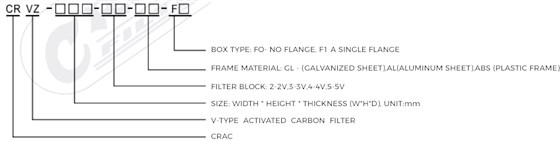

Cracfilter
Technical Parameters
WxHxD
(mm)
WxHxD
(mm)
Area
(m²)
Carbon
Airflow
(CMH)
InitialPressure
(Pa)
Airflow
(CMH)
InitialPressure
(Pa)※
12x24x12
287×592x292
4.5
2.0
1000
53
1700
120
20x24x12
492x592x292
8.0
3.5
1660
53
2800
120
24x24x12
592x592x292
9.5
4.0
2000
53
3400
120
WxHxD
(mm)
WxHxD
(mm)
Area
(m²)
Carbon
Airflow
(CMH)
InitialPressure
(Pa)
Airflow
(CMH)
InitialPressure
(Pa)※
12x24x12
287×592x292
4.5
2.0
1000
53
1700
120
20x24x12
492x592x292
8.0
3.5
1660
53
2800
120
24x24x12
592x592x292
9.5
4.0
2000
53
3400
120
