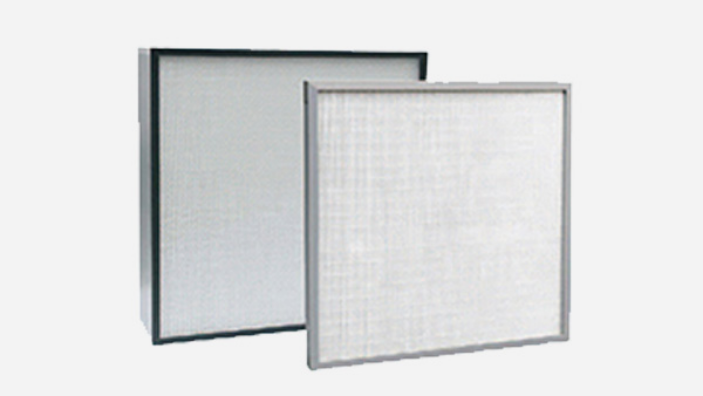

No separator high efficiency filter life

Hepa filters are widely used in sterile rooms (electronic products and pharmaceutical production sites,
operating rooms) and other applications (such as air purifiers, vacuum bag precipitators and masks). Today,
Changrui Purification introduces you to the high efficiency filter without partition.


1. Features:
It is mainly used for purifying air conditioning system and the end filtration of some purification equipment.
The outer frame is: sandwich wood, galvanized plate, aluminum profile, stainless steel plate; Filter material:
glass fiber material. In the filter of this construction mode, the filter material is made into a multi-fold type,
forming a ventilation airflow channel, increasing the filter material area and air supply volume, and reducing
the resistance of air supply; It has the advantages of compact structure, low resistance, large dust capacity,
good uniformity of wind speed, good general use and convenient device.

2. Applicable Conditions:

Temperature: -20~~90℃; Humidity: Paper partition ≤85%, aluminum partition ≤95%, slightly acidic and alkaline
 air filtration.

3. Application period:

Under the conditions of additional air volume, a new filter needs to be replaced after 1 to 1 and a half years; Or
 when the resistance of the filter reaches more than 600Pa, a new filter needs to be replaced; If there is no
filter above F8 before the high efficiency filter as a pre-filter, the service life cycle will be greatly reduced.

4. Use precautions:

Regularly check whether there is debris blocking on the air inlet surface of the filter and whether there is
damage on the surface of the filter material; If any object obstructs the appearance, it should be removed;
Filter material appearance damage is severe, it is necessary to plug the leak; If the appearance of damage can
not be repaired, it is necessary to replace a new filter; When the high efficiency air filter is installed, it is
necessary to ensure the tightness of the pressing edge of the frame to avoid air leakage; Do not use heavy
objects to touch the appearance of the filter, do not force to pull the filter material appearance of the filter;
When installing, the pressure at the border near the filter should be uniform; Ensure that the filter with more
than F8 power is used as a pre-filter to maintain the high efficiency filter.
