Product Introduction
Features

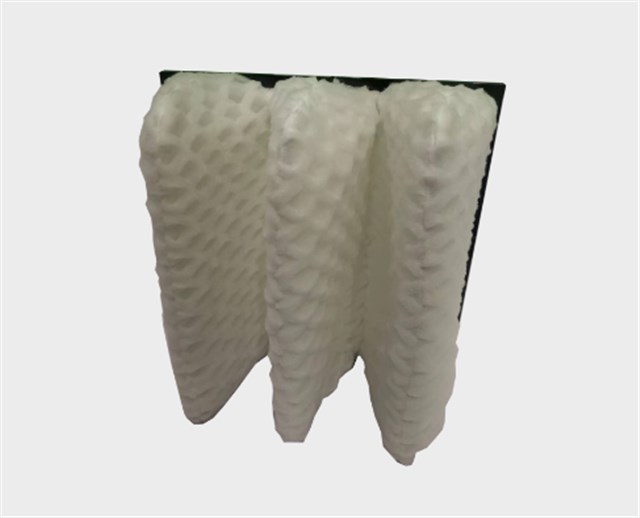

High Capture Efficiency,Good At Capturing Tiny Paint Mist;Long Service Life,3D Diamond-Shaped
Diamond Pocket Design With Low Resistance Which Can Expand The Filtering Surface Area By
More Than 1 Times,Simple Installation,It Can Directly Replace Traditional Ordinary Bag Filters;Large
Dirt Holding Capacity,The Paint Mist Capture Capacity Can Reach A Maximum Of 27Kg/M With |
The Capturing Efficiency Of 99.8%For Small Paint Mist Above 10 Microns
Applications
Suitable For Spray Booths,Intercepting Paint Mist And Slag From High Solid Paints, Water-Based
Paints,Multi-Component Paints,Colorants And Adhesives In The Air Riltratio Filtration Process
Specification
|
Type |
EMiclency |
Dimensions (mm) |
Number of Bags |
Rated Airflow (m²/h) |
Initial Resistance (Pa) |
Paint Capacity (kg) |
|
CR-DPA |
G4 |
592×592×320 |
3 |
3400 |
35 |
15 |
|
592×592×500 |
5 |
3400 |
30 |
23 |
